7-position right-angle header with shrouded latch
The 5-103634-6: This is a 7-position single-row right-angle header from the AMPMODU MTE series, designed for board-to-board or cable applications.

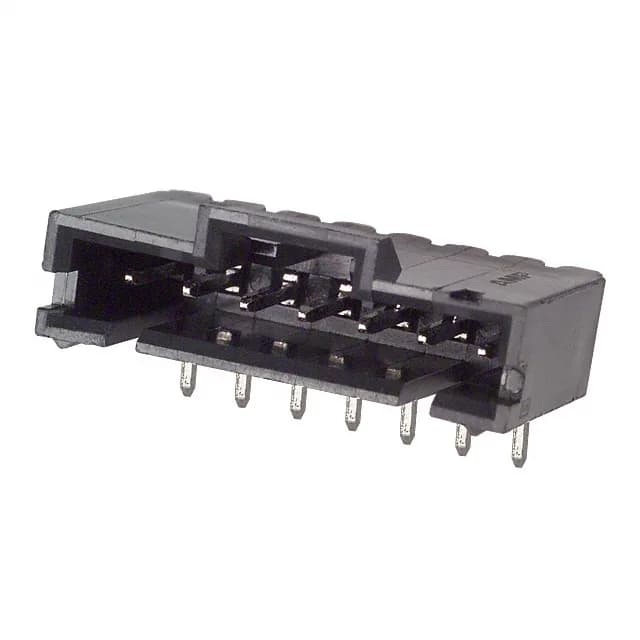

5-103634-6 TE Connectivity AMPMODU MTE 7-Pin Right Angle
MPN5-103634-6
Active
TE Connectivity AMP Connectors AMPMODU MTE, 7-position single-row right-angle header, 0.100" (2.54 mm) pitch, shrouded 4-wall, latch holder, tin-plated contacts, rated 3 A, -65°C to 105°C, UL94 V-0.
$1.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the pinout of 5-103634-6?
The pinout follows the standard single-row 7-position layout with all positions loaded. The mating contact length is 0.230" (5.84 mm) and the post length is 0.130" (3.30 mm). Refer to the product drawing for the exact footprint.
