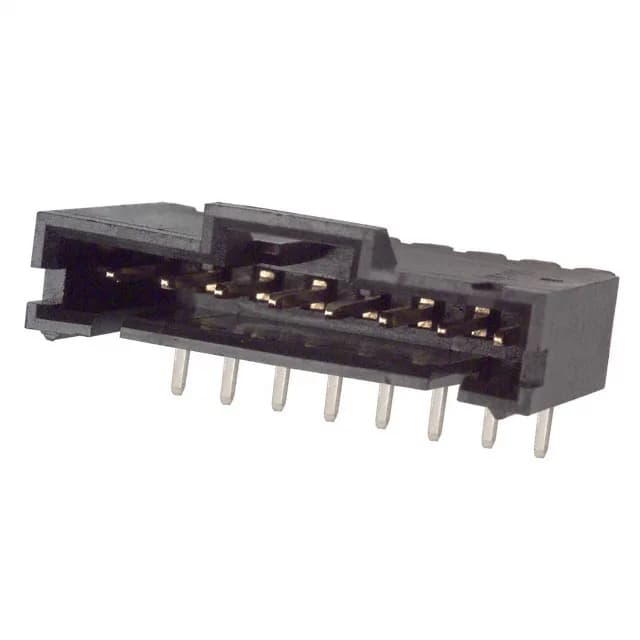

TE Connectivity AMPMODU MTE header, 5-103635-7, 8-position single-row, 2.54mm pitch, through-hole right-angle, shrouded 4-wall, latch holder, gold-plated mating contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.230" mating pin length and 0.130" post length align with standard AMPMODU MTE receptacles, ensuring reliable contact wipe and solder joint formation. UL94 V-0 thermoplastic insulation and RoHS compliance simplify regulatory acceptance across global builds.
Supplied in tube packaging; confirm the mating half (AMPMODU MTE receptacle) and position count before committing the BOM line.
