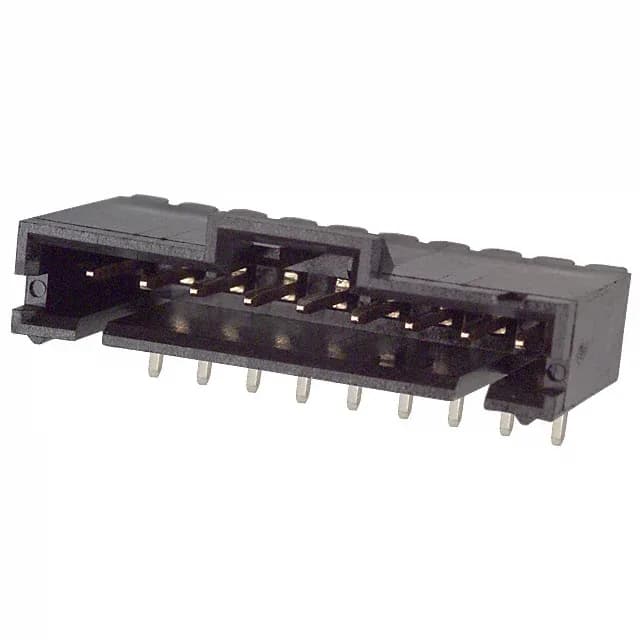

TE Connectivity AMPMODU MTE header, 5-103635-8, 9-position single-row, 0.100-inch (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, 3 A, latch holder, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 9-position single-row layout means the mating half must also be a 9-position single-row receptacle or header of the same pitch.
Through-hole right-angle mounting with solder termination. A keying slot is present to prevent mis-mating with non-keyed receptacles. The brass contacts have a tin post finish (100.0 µinch) for good solderability, and a gold mating finish (15.0 µinch) for low contact resistance over multiple cycles.
This is a 9-position single-row male header on 0.100-inch pitch. It mates with any 9-position single-row receptacle or female header of the same pitch, typically from the AMPMODU MTE series. The latch holder on this header requires a mating half with a compatible latch feature.
Yes, the 0.100-inch (2.54 mm) pitch matches standard IDC ribbon cable connectors. However, verify that the IDC receptacle has a 9-position single-row layout and a latch mechanism that engages with the header's latch holder.
