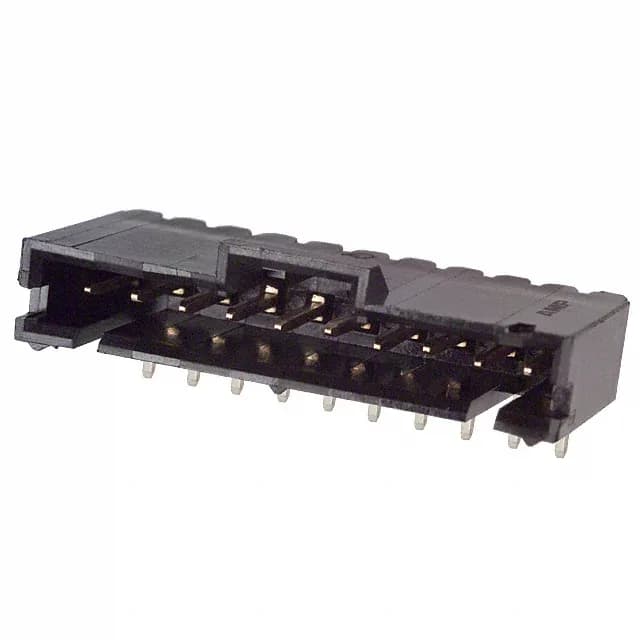

10-Position Shrouded Header – Right-Angle Board Mount
The 5-103635-9 is a 10-position, single-row header from the AMPMODU MTE series, designed for board-to-board or cable connections. Its 0.100" (2.54mm) pitch matches standard ribbon cable and discrete wire housings, and the right-angle orientation places the mating axis parallel to the PCB—useful when the board sits near an enclosure wall or another tall component. The mating contacts are gold-plated (15.0 microinches), which resists corrosion and maintains contact resistance through repeated mate cycles—a practical choice for field-serviceable or test equipment where the connector sees regular disconnect. A latch holder on the shroud locks the mating plug in place, preventing accidental disconnection under vibration or cable strain. The 4-wall shroud protects the pins during handling and guides the mating half into alignment.
Rated 3 A per Contact – Derate Above 25°C
Each contact is rated for 3 A continuous. The -65°C to 105°C operating range covers automotive and industrial cabinet environments. The through-hole solder tails (0.130" post length) provide a robust mechanical anchor to the PCB, and the right-angle bend keeps the board profile low. The tin-plated post finish (100 microinches) is compatible with standard lead-free soldering processes.
Active Production – Sourced per RFQ
Pricing and lead time are confirmed at quote time against the BOM quantity. The part ships in tube packaging; no minimum order quantity is enforced beyond the tube count.
