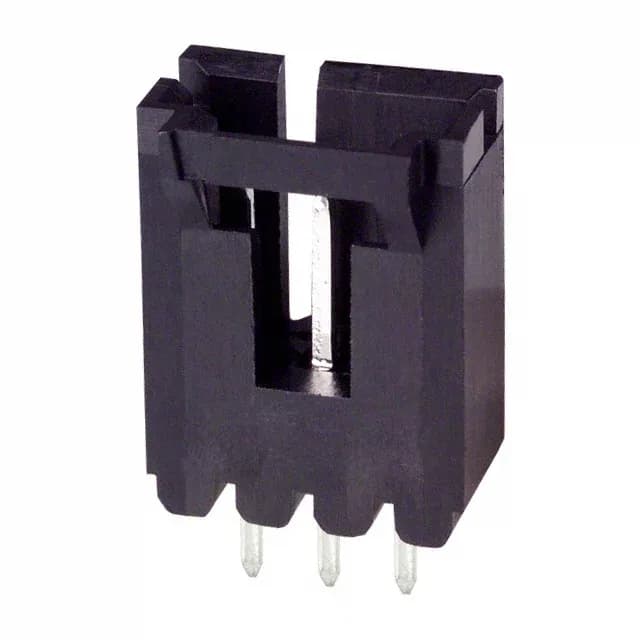

TE Connectivity AMPMODU MTE, Header, 3 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Tin Plating, Shrouded 4-Wall, Keying Slot, UL94 V-0, -65°C~105°C, 3 A
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-103639-2: The RoHS compliance is verified per the manufacturer's declaration.
The keying slot prevents insertion of a mismatched receptacle, reducing assembly errors in multi-connector harnesses. The 3-position, single-row layout is a common signal interconnect for control boards, sensor interfaces, and low-power distribution within the AMPMODU MTE family.
No stock-holding claim is made — each order is sourced per request.
Yes, the 5-103639-2 is RoHS compliant per the manufacturer's declaration.
The mating pitch is 0.100" (2.54 mm), a standard spacing that matches a wide range of IDC receptacles and crimp housings.
