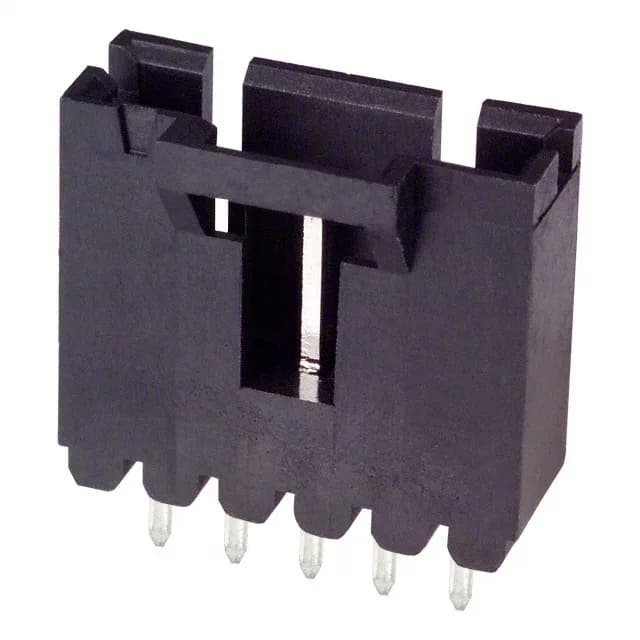

TE Connectivity AMP Connectors AMPMODU MTE, Header, 5 Positions, 2.54 mm Pitch, Through Hole, Solder, Tin Mating/Post, Shrouded - 4 Wall, Latch Holder, Black Thermoplastic, UL94 V-0, -65°C~105°C, 3 A
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-103639-4: At 2.54 mm pitch, this header occupies the same board footprint as legacy 0.100" grid connectors, making it a drop-in for existing layouts that need a 5-circuit single-row interface. The 5.84 mm mating contact length provides adequate wipe for reliable tin-to-tin contact under normal insertion depths.
If your BOM calls for 5 positions at 2.54 mm pitch, stick with 5-103639-4; the 6-position sibling requires a board layout change and a different mating receptacle.
Yes, 5-103639-4 is RoHS compliant per TE Connectivity's declaration.
