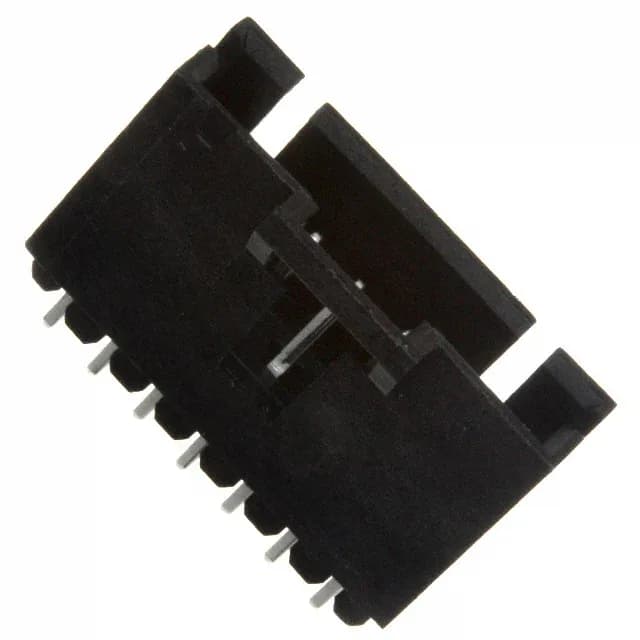

TE Connectivity AMPMODU MTE, Header, 7 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Tin Mating/Post, 3A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Termination is through-hole solder, with a contact length of 0.130" (3.30 mm) on the post side. The insulation height of 0.535" (13.60 mm) sets the z-height budget above the PCB surface. The header is supplied in a tube. The base product number is 103639, and the black thermoplastic housing provides visual contrast for assembly inspection.
Yes, the 5-103639-6 is RoHS compliant per the manufacturer's listing.
The header has 7 positions, all loaded, in a single row. The contact shape is square male pin. The pinout follows the standard AMPMODU MTE single-row layout; the keying slot prevents reverse mating.
The connector is rated for automotive, general purpose, medical, and telecommunications applications.
