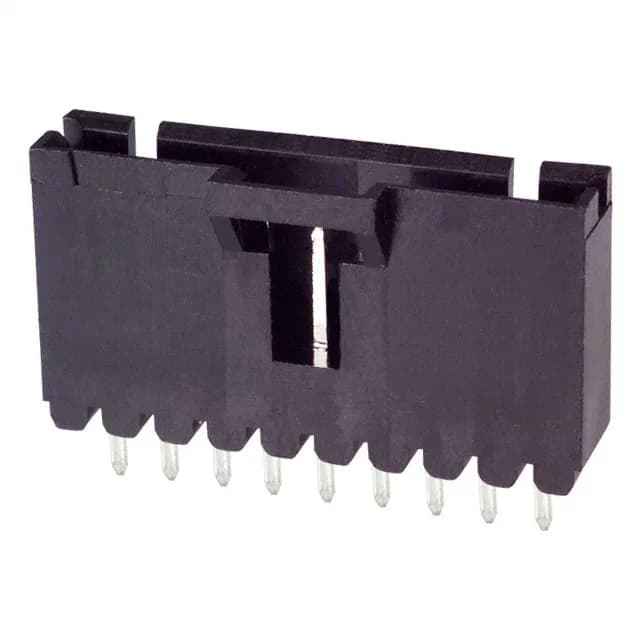

TE AMPMODU MTE header, order code 5-103639-8, 9 positions, single row, 2.54 mm pitch, 3 A, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-103639-8: The housing is rated UL94 V-0.
The 2.54 mm pitch and single-row layout suit board-to-board or cable applications where position count is low and routing density is moderate. Tin mating finish (100.0 µin) supports cost-sensitive builds with moderate mating cycle requirements.
Within the same AMPMODU MTE series, the 5-103639-8 is a 9-position single-row header.
