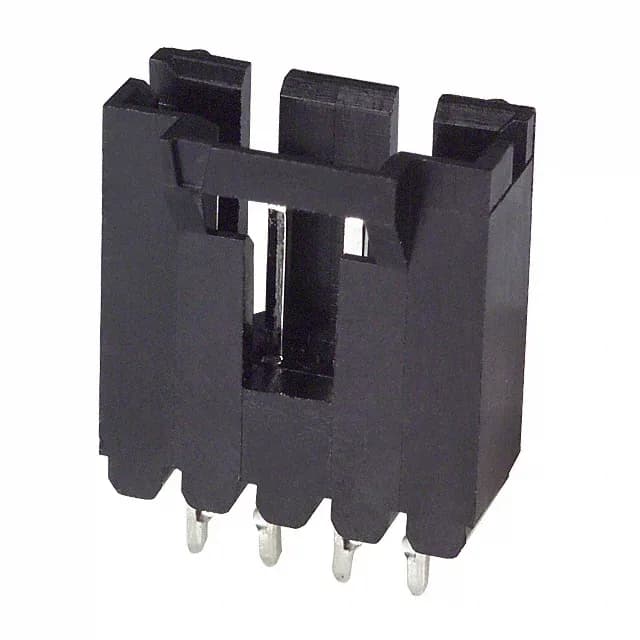

TE Connectivity AMPMODU MTE, Shrouded Header, 4 circuits, 0.100" (2.54mm) pitch, through-hole, press-fit/solder termination, tin-plated contacts, 3A, -65°C to 105°C, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Rated 3A per contact — that is a signal-level current, not a power bus. The keying slot feature prevents mis-mating with a receptacle that has a different key position — useful when multiple similar headers sit side by side on a board.
RoHS compliant per current directive; no exemptions or sunset clauses noted for this order code.
Submit an RFQ with your target quantity and delivery window — pricing and lead time are confirmed per quote against multi-distributor sourcing. No stock-holding claim is made here.
The style is listed as 'Board to Board or Cable' — it mates with a receptacle that can be either board-mounted or terminated to a cable assembly.
