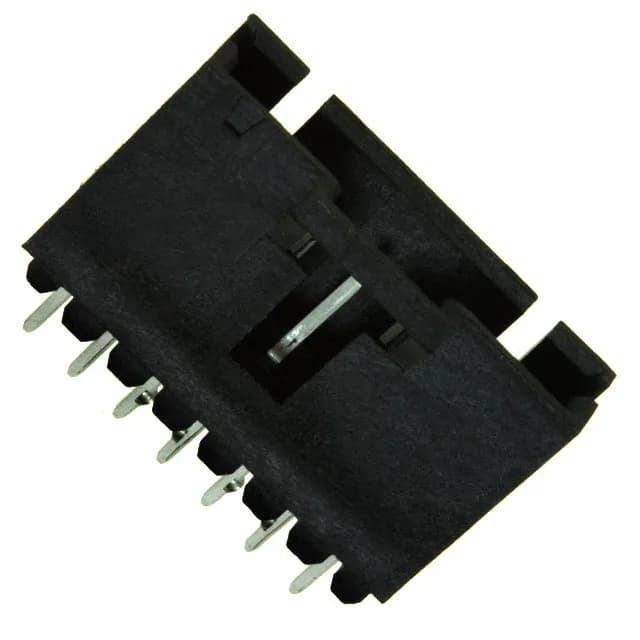

The 5-103669-6 is a 7-position, single-row male pin header from the TE Connectivity AMPMODU MTE series. The header is fully shrouded on all four walls, which protects the pins during handling and guides the mating receptacle into alignment without stubbing.
Board fit and termination details
Termination is listed as press-fit and solder — the through-hole posts are 0.130" (3.30mm) long, with a 0.230" (5.84mm) mating pin length and 0.545" (13.84mm) overall contact length. The insulation height of 0.535" (13.60mm) sets the z-height above the board. A latch holder fastening type provides positive retention against vibration — the mating receptacle clicks into place and stays until deliberately released. The housing includes a keying slot to prevent mis-mating with non-keyed counterparts.
