Through-Hole Press-Fit Termination and Board Fit

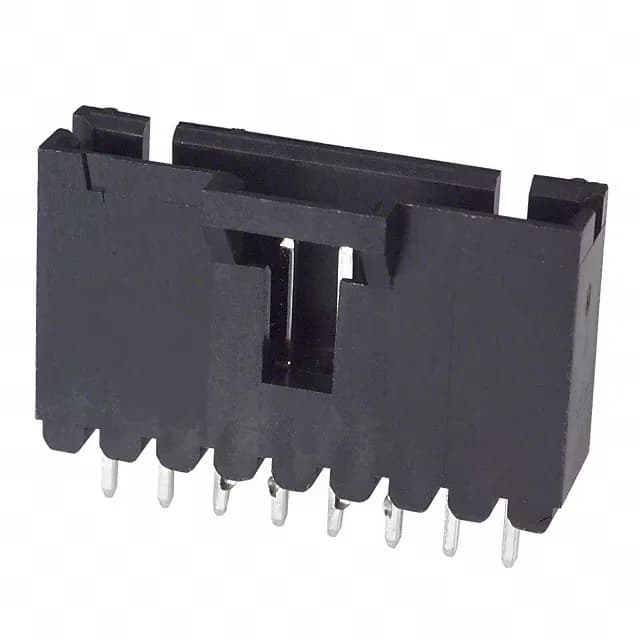

The 5-103669-7: Termination is listed as press-fit and solder — the through-hole posts (0.130" / 3.30 mm long) can be press-fit into plated through-holes for a solderless assembly, or soldered for a more permanent joint. The 0.545" (13.84 mm) overall contact length includes the mating pin (0.230" / 5.84 mm) and the post. The 0.535" (13.60 mm) insulation height means the header stands off the board enough to clear components underneath, but the z-height budget should be checked against the mating receptacle and enclosure clearance. A keying slot is present in the housing — this prevents mismating with receptacles that lack the corresponding key, a common requirement in multi-connector panels where wrong-mate could damage circuits.
RoHS compliant per the lifecycle record — no additional compliance documentation is on file beyond the standard TE Connectivity declaration.
Comparison with Peer 1394090-1
The closest peer in the AMPMODU MTE family is 1394090-1, a 6-position right-angle header on a 0.112" (2.85 mm) pitch. The 5-103669-7 offers 8 positions on the standard 2.54 mm pitch, with a thicker tin finish (100.0 µin vs 39.4 µin) and vertical orientation — the right-angle peer is better for board-edge routing where z-height is tight.
