TE Connectivity AMP Connectors 5-103669-8 — Pin Headers

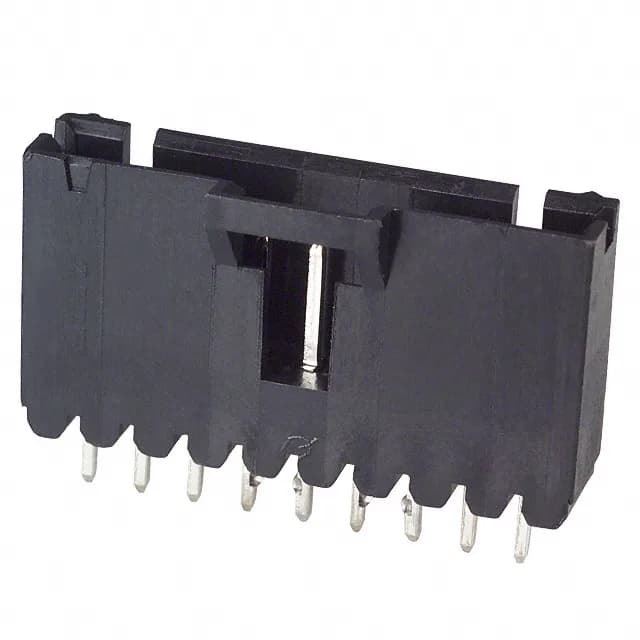

5-103669-8 TE AMPMODU MTE Header 9 Pos 2.54mm Pitch

MPN5-103669-8
Active

TE Connectivity AMP Connectors AMPMODU MTE header, 5-103669-8, 9 positions, 0.100" (2.54mm) pitch, single row, shrouded 4-wall, tin-plated square pins, 3 A per contact, through-hole press-fit/solder termination, black thermoplastic UL94 V-0 housing, keying slot, latch holder fastening.

$1.2100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103669-8 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103669-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions9
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

9-position shrouded header at 0.100-inch pitch

The 5-103669-8 is a 9-position, single-row, shrouded 4-wall header from the AMPMODU MTE series.

Shrouding and keying for blind-mate reliability

The 4-wall shroud surrounds the pins on all sides — this prevents bent contacts during mating and protects the pins in unmated condition on the board. The keying slot ensures the header only mates with a correctly oriented receptacle, eliminating misinsertion. Through-hole mounting with press-fit and solder termination options.

Frequently asked questions

Is 5-103669-8 keyed to prevent misinsertion?

Yes, the header includes a keying slot that ensures the mating receptacle can only be inserted in the correct orientation. This prevents pin damage and reverse-wiring issues during assembly or field service.

What applications is 5-103669-8 suitable for?

The listed applications include automotive, general purpose, medical, and telecommunications. The shrouded 4-wall design and latch holder make it suitable for environments where vibration, cable strain, or blind-mate conditions are present.
