TE Connectivity AMP Connectors 5-103672-1 — Pin Headers

5-103672-1 TE AMPMODU MTE 2-Position Right-Angle Header

MPN5-103672-1
Active

TE Connectivity AMPMODU MTE header, 5-103672-1, 2 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, tin-plated male pins, latch holder, board lock, UL94 V-0.

$0.9800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103672-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103672-1 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack

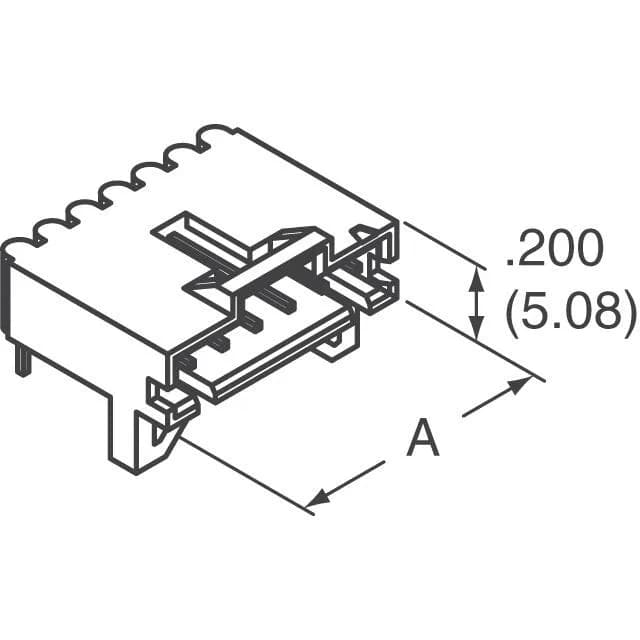

Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103672-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions2
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Routing Details

The 5-103672-1: The 0.100" pitch is a standard 2.54 mm grid — the footprint matches common prototyping boards and existing PCB layouts without a custom pad pattern. The solder post length of 0.130" (3.30 mm) is suited for standard 1.6 mm thick PCBs — the post protrudes enough for a reliable solder fillet without bottoming out on the board.

How It Compares to Similar AMPMODU MTE Headers

The 8-position 1376366-8 (0.087" pitch, tin plating) is denser and carries a higher current rating (5 A), but the pitch mismatch means a different PCB footprint and a different receptacle family.

Frequently asked questions

What is the pitch of 5-103672-1?

The mating pitch is 0.100" (2.54 mm), single row.

Does 5-103672-1 have a latch or keying slot?

Yes, it has a latch holder for positive locking and a keying slot to prevent mis-mating.
