TE Connectivity AMP Connectors 5-103672-2 — Pin Headers

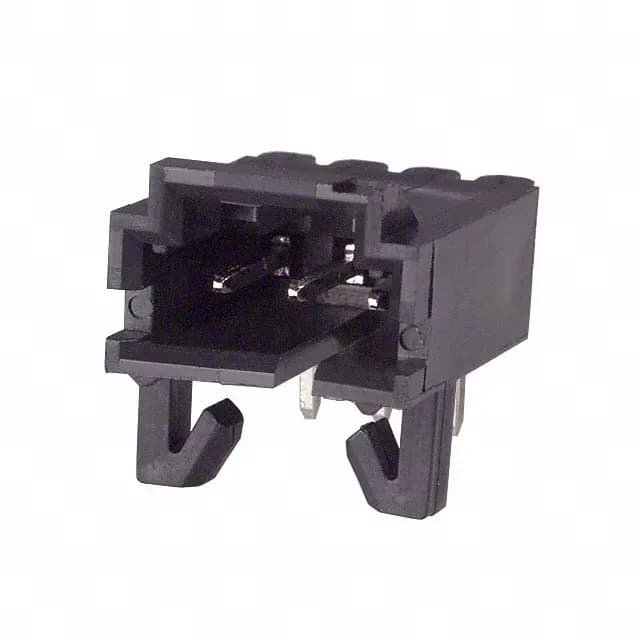

5-103672-2 TE Connectivity AMPMODU MTE Header 3 Pos 2.54mm

MPN5-103672-2
Active

TE Connectivity AMPMODU MTE header, 5-103672-2, 3-position single-row right-angle through-hole, 2.54mm pitch, shrouded 4-wall, with board lock and latch holder, rated 3A per contact, tin-plated mating and post.

$1.4600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103672-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103672-2 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103672-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-fit and routing details

The 5-103672-2: This AMPMODU MTE header mates board-to-board or cable assemblies on a 2.54mm pitch, with 3 positions in a single row.

Current and contact finish

The tin-on-tin mating finish (100 microinches on both sides) is suited for moderate-cycle applications — expect several hundred mates before wear-through, which is typical for internal harness connections in automotive or telecom gear. The brass square pin, 0.230" mating length, provides a solid wipe surface for the receptacle contact.

Mounting and locking

The keying slot in the housing prevents incorrect orientation during assembly — useful when multiple similar headers sit on the same board.

Frequently asked questions

Does 5-103672-2 have a board lock feature?

Yes, it includes a board lock and a keying slot. The board lock anchors the header during soldering, and the keying slot prevents incorrect mating orientation.

What is the mating connector for 5-103672-2?

This header mates with AMPMODU MTE receptacle housings that accept the matching crimp terminals.
