The 5-103673-2: The 0.130" (3.30mm) post length provides a secure through-hole solder joint on standard 1.6mm boards. The 0.200" (5.08mm) insulation height above the board leaves room for trace routing under the header body, though the right-angle tail footprint occupies board edge real estate — plan the keep-out zone accordingly.

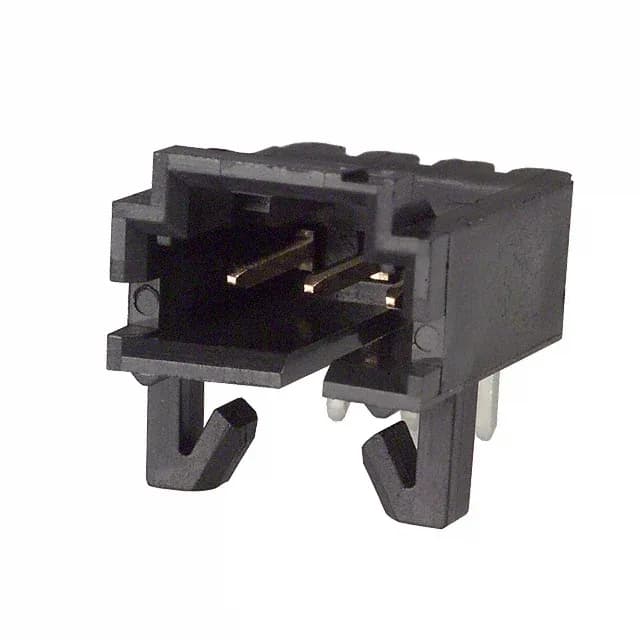

5-103673-2 TE Connectivity AMPMODU MTE Header, 3 Pos, 2.54mm
MPN5-103673-2
Active
TE Connectivity AMPMODU MTE header, 5-103673-2, 3-position single-row right-angle through-hole, 0.100" (2.54mm) pitch, 3A per contact, 15µinch gold mating finish, board lock and keying slot, UL94 V-0 housing.
$1.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Is 5-103673-2 RoHS compliant?
Yes, 5-103673-2 is RoHS compliant.
What is the pitch and current rating of 5-103673-2?
The pitch is 0.100" (2.54mm) and the current rating is 3A per contact.
