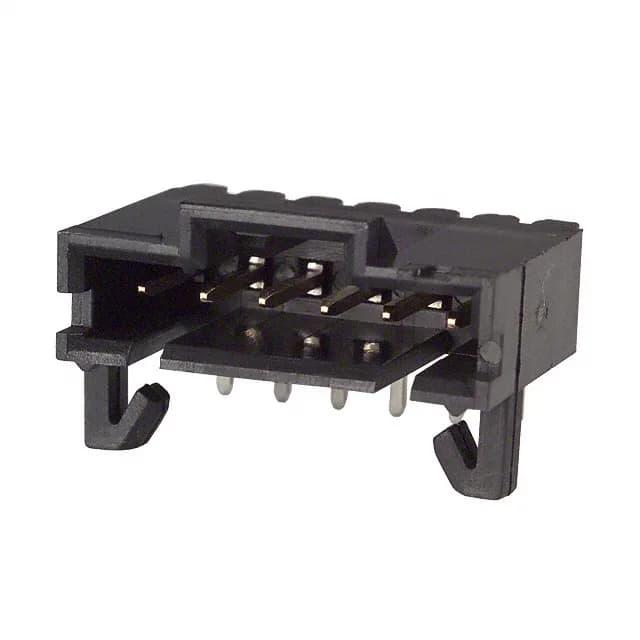

TE Connectivity AMPMODU MTE series, 5-103673-5, shrouded right-angle pin header, 6 circuits, 2.54mm pitch, gold-plated mating contacts, through-hole solder termination, board lock
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-103673-5: 0.100" (2.54mm) pitch sets the board footprint and the per-contact current ceiling.
The tin-plated solder post (100µinch) is standard for through-hole wave or hand-solder termination.
The gold mating finish on 5-103673-5 delivers higher mating-cycle endurance than the tin-tin sibling, which matters for connectors cycled during test or field service.
0.100" (2.54mm) pitch — standard for AMPMODU MTE single-row headers. This sets the board footprint and the mating receptacle pitch.
Yes, listed as RoHS compliant.
1394090-1 is a 6-position right-angle header from the same series, but with a 2.85mm pitch and tin-tin plating — not a form-fit-function cross due to the pitch difference.
