TE Connectivity AMP Connectors 5-103735-2 — Pin Headers

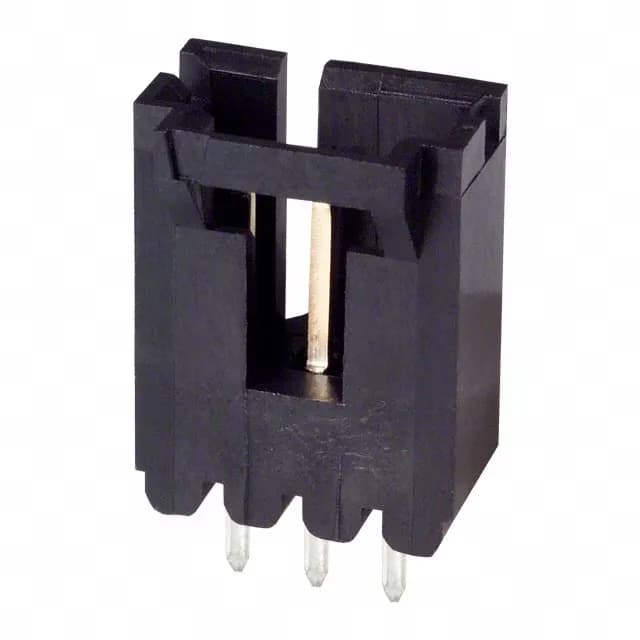

5-103735-2 TE Connectivity AMPMODU MTE Header 3 Pos 2.54mm

MPN5-103735-2
Active

TE Connectivity AMP Connectors AMPMODU MTE series, 5-103735-2, Board to Board or Cable header, 3 circuits, 0.100" (2.54mm) pitch, single row, shrouded 4-wall, through-hole solder, gold-plated mating contacts, rated 3A per contact.

$1.6200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103735-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103735-2 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103735-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

What This 3-Position Header Connects To

The insulation height of 0.535" (13.60mm) is the tallest part of the header — useful for clearance checks in tight enclosures.

Peer Cross-Shop: 1394090-1

The closest functional alternative within the AMPMODU family is 1394090-1: a 6-position, single-row, shrouded header with a 0.112" (2.85mm) pitch and tin-plated mating contacts. The pitch difference (2.54mm vs 2.85mm) means the two are not footprint-compatible — a board redesign is required to swap. The tin plating on 1394090-1 also reduces the mating cycle rating compared to the gold on 5-103735-2.

Frequently asked questions

Where can I buy 5-103735-2 and how do I get a price?

5-103735-2 is an active TE Connectivity AMP Connectors part. Submit an RFQ for a firm price and lead time.

What is the mating connector for 5-103735-2?

The mating half is an AMPMODU MTE receptacle housing (same series base code 103735) that accepts crimp terminals. The header is keyed, so the receptacle must also carry the matching keying slot.

Is 5-103735-2 RoHS compliant?

Yes, it is RoHS Compliant per the current directive.
