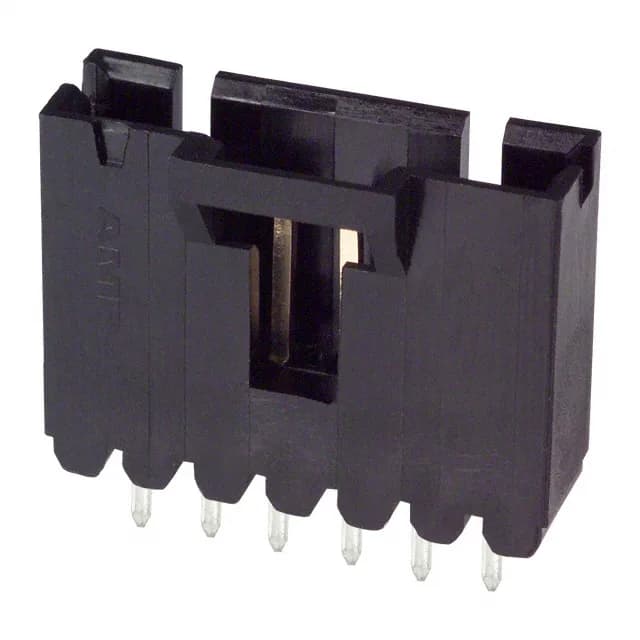

TE Connectivity AMPMODU MTE, 5-103735-5 — 6-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder, gold mating contacts, rated 3 A, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103735-5: 30 µinch gold over nickel on the mating surface. The post tails are tin-plated (100 µinch), which solders cleanly and matches the board finish without galvanic mismatch.
Rated for automotive, general purpose, medical, and telecom environments.
Sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed per request.
Any AMPMODU MTE receptacle housing with 6 circuits on 2.54 mm pitch, using the matching crimp terminals. The latch holder on this header locks with the receptacle latch.
