TE Connectivity AMP Connectors 5-103904-7 — Pin Headers

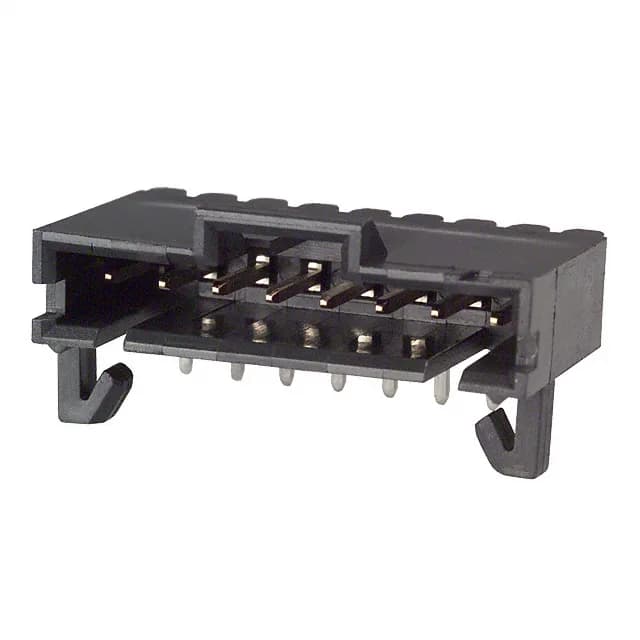

5-103904-7 TE Connectivity AMPMODU MTE 8-Pin Right-Angle

MPN5-103904-7
Active

TE Connectivity AMPMODU MTE, 8-position single-row right-angle pin header, 0.100" (2.54 mm) pitch, shrouded 4-wall, board lock, gold-plated mating contacts, UL94 V-0, rated 3 A, -65°C to 105°C.

$2.5600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103904-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103904-7 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103904-7 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-mount header for wire-to-board or board-to-board links

This 5-103904-7 is an 8-position, single-row, right-angle pin header from the AMPMODU MTE series. It mates with AMPMODU MTE receptacle housings for wire-to-board connections, or with another header for board-to-board stacking. The 4-wall shrouding protects the square pins and guides the mating connector into alignment. Tin-plated posts (100.0 µin) solder cleanly into through-hole boards.

Board lock and keying slot for vibration resistance

The keying slot prevents inserting the mating connector in the wrong orientation — if it doesn't align, it doesn't mate. This is the same retention system used across the AMPMODU MTE family.

We source this directly from TE Connectivity and can provide current lead times on request.

Frequently asked questions

Does 5-103904-7 have a board lock and keying slot?

Yes. The header includes both a board lock for PCB retention and a keying slot to prevent mis-mating with the receptacle.

Is 5-103904-7 a shrouded header?

Yes, it is fully shrouded with 4 walls, protecting the pins and guiding the mating connector.
