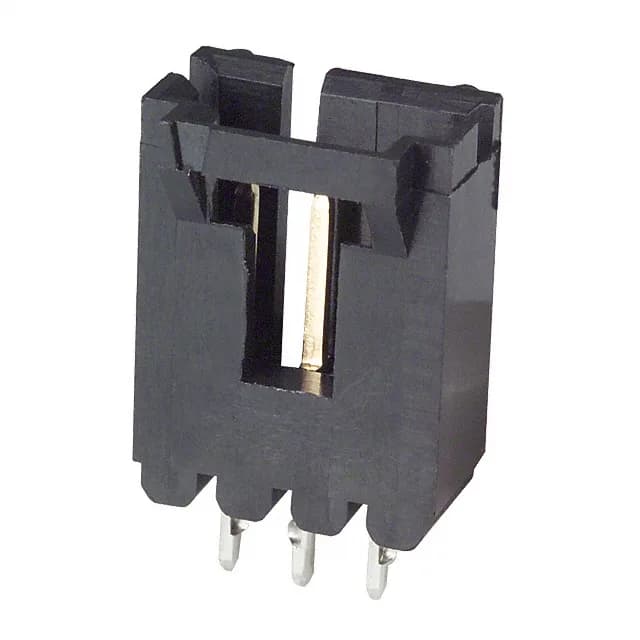

TE Connectivity AMP Connectors AMPMODU MTE header, 5-103908-2, 3 positions, 0.100" (2.54mm) pitch, shrouded - 4 wall, male pin, through hole, press-fit/solder termination, gold mating finish, 3 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Its 0.100" (2.54mm) pitch sets the PCB footprint and per-contact current ceiling — at 3 A the temperature rise stays within the thermoplastic housing limit.
The press-fit, solder termination tail allows solderless assembly into plated through-holes — rework-friendly and avoids thermal stress on the housing during wave or reflow processes.
The 5-103908-2 is sourced through independent distribution against your BOM quantity. Submit an RFQ for your target volume and lead time.
The shrouded - 4 wall and latch holder ensure proper alignment and retention with the mating receptacle.
