The 5-103908-5: The mating surface carries 30 µin gold over nickel, rated for repeated mating without contact fretting. In a field-service application cycled quarterly, that translates to decades of reliable interconnect at the interface. The press-fit and solder termination options give flexibility for both reflow and press-fit backplane assembly.

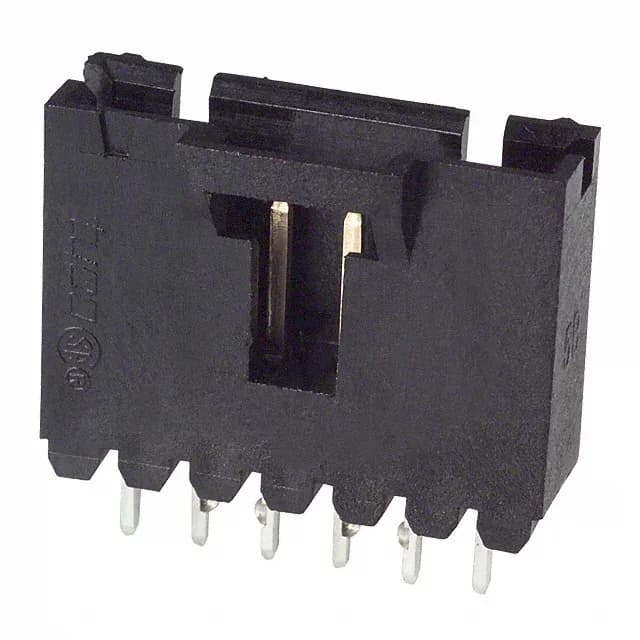

5-103908-5 TE Connectivity AMPMODU MTE Header, 6 Pos
MPN5-103908-5
Active
TE Connectivity AMPMODU MTE, Header, 6 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating, 3 A, Active
$2.0000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pitch and current rating of 5-103908-5?
The pitch is 0.100" (2.54 mm) and the current rating is 3 A per contact. The 30 µin gold mating finish supports repeated mating cycles.
