Board-fit and mating profile
The 5-103908-6: Rated 3 A per contact, with gold on the mating surface (30.0 µin) and tin on the post (100.0 µin). The gold handles repeated mating cycles; the tin tail takes the solder well.

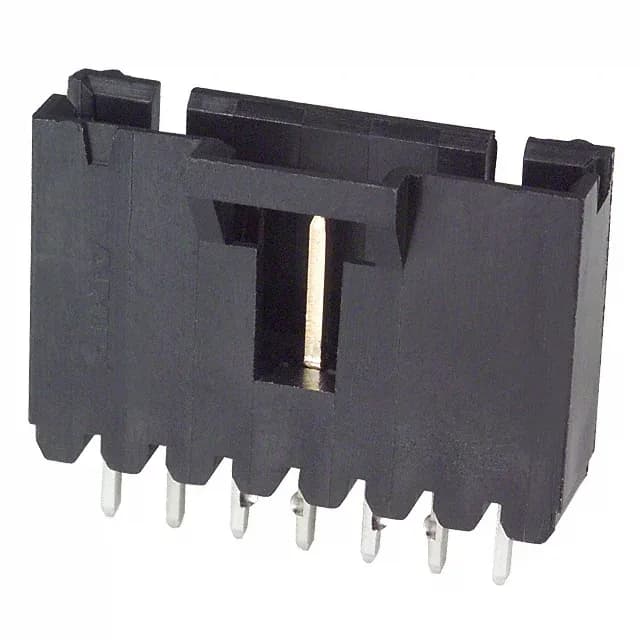

5-103908-6 TE Connectivity AMPMODU MTE Header, 7 Pos
MPN5-103908-6
Active
TE Connectivity AMP Connectors AMPMODU MTE header, 5-103908-6, 7 positions, 0.100" (2.54 mm) pitch, shrouded - 4 wall, latch holder, gold mating finish, through hole, press-fit/solder termination, active production.
$1.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pitch of 5-103908-6?
The pitch is 0.100" (2.54 mm).
How many positions does 5-103908-6 have?
7 positions, all loaded.
Is 5-103908-6 shrouded and does it have a latch?
Yes, it is fully shrouded (4-wall) and includes a latch holder for secure mating.
