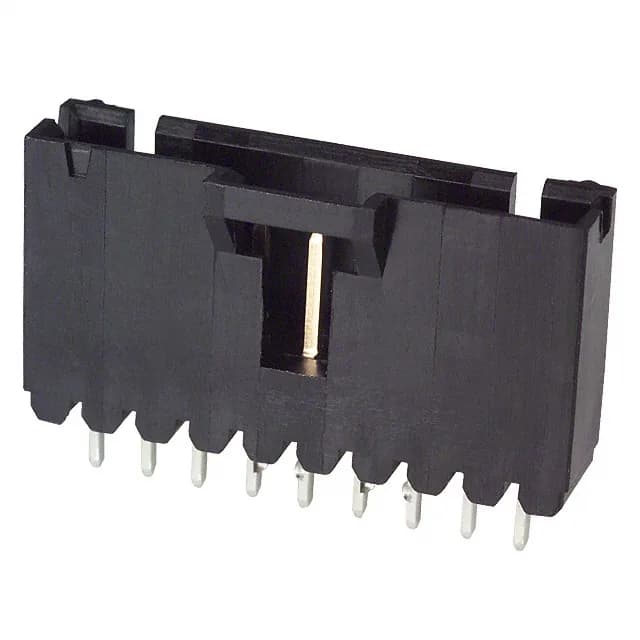

TE Connectivity AMP Connectors AMPMODU MTE header, 5-103908-8, vertical through-hole, 9 positions, 0.100" (2.54 mm) pitch, shrouded 4-wall, male pin, gold mating finish, 3 A rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103908-8: The through-hole mounting with 0.130" (3.30 mm) post length fits standard PCB thicknesses. Full 4-wall shrouding and a latch holder provide mechanical protection and positive retention against vibration — suitable for automotive, medical, and telecom environments where the connector sees cable strain or shock.
The brass square pin contact (0.025" square typical for MTE) provides consistent contact resistance across the 9 loaded positions.
Available in tube packaging.
The mating contact length is 0.230" (5.84 mm).
Yes, it is RoHS compliant.
