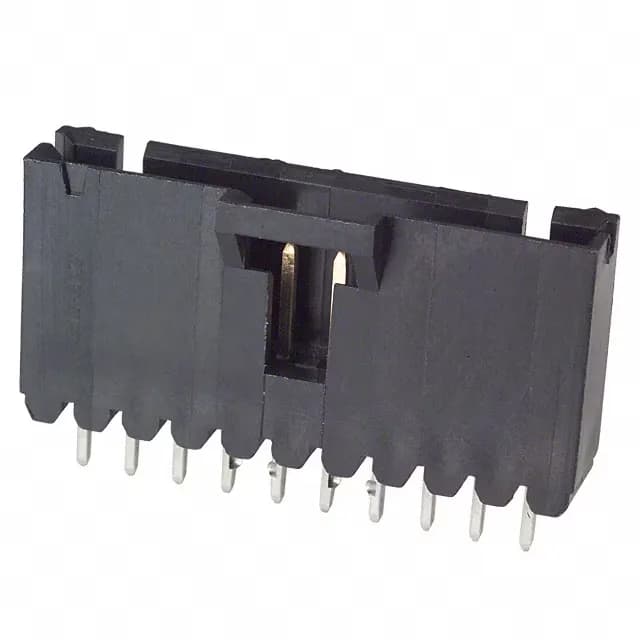

TE Connectivity AMPMODU MTE header, 5-103908-9, 10 positions, 0.100" (2.54mm) pitch, shrouded 4-wall, male pin, through-hole, press-fit/solder termination, gold mating contacts, 3A rating, UL94 V-0, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103908-9: Through-hole mounting with a 0.130" (3.30mm) post length provides a stable solder joint or press-fit anchor for the 10-position single-row header. The 0.535" (13.60mm) insulation height and 0.545" (13.84mm) overall contact length define the z-height budget above the board — confirm clearance with adjacent components.
ROHS3 compliant and UL94 V-0 rated — meets material and flammability requirements for equipment inside enclosures.
This header mates with AMPMODU MTE receptacle housings and crimp terminals from the same series. Confirm the mating half position count and keying slot alignment before ordering.
0.100" (2.54mm) pitch, 10 positions, 0.535" (13.60mm) insulation height, 0.545" (13.84mm) overall contact length, 0.230" (5.84mm) mating length, 0.130" (3.30mm) post length.
Yes, ROHS3 compliant per the manufacturer's status.
