TE Connectivity AMP Connectors 5-103911-1 — Female Socket Headers

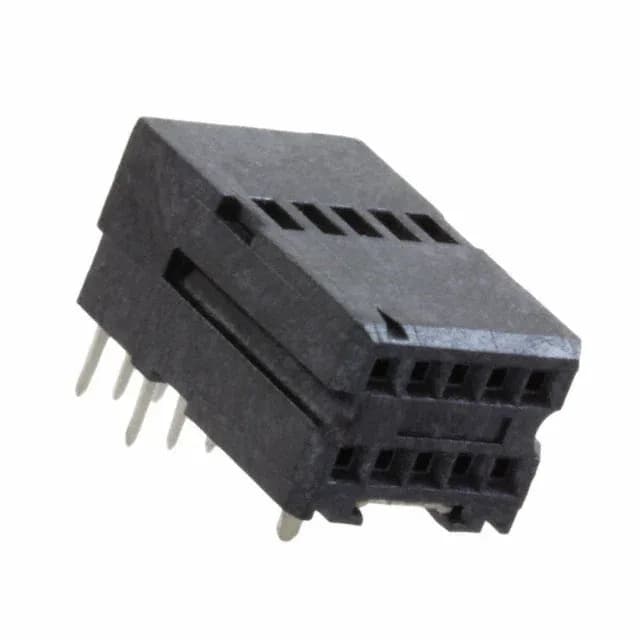

5-103911-1 TE AMPMODU System 50 10-Pin Receptacle

MPN5-103911-1
Active

TE Connectivity AMP Connectors AMPMODU System 50, 5-103911-1, 10-position dual-row female socket receptacle, 0.050" (1.27 mm) mating pitch, through-hole right-angle, gold-plated contacts, UL94 V-0 black housing, active production.

$3.8400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103911-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103911-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating30VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.217\" (5.51mm)
Insulation materialThermoplastic, Glass Filled

All specifications

5-103911-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Right-Angle Receptacle at 0.050" Pitch

The 0.050" (1.27 mm) mating pitch allows dense routing on the PCB, while the 0.100" (2.54 mm) row spacing keeps the layout manageable for standard 2.54 mm grid designs.

Gold Mating Surface and 1 A Current Rating

The post tails are tin-plated (150.0 µin) for reliable solder wetting.

Comparison with Peer 1376775-2

The closest functional peer is 1376775-2, also a TE AMPMODU System 50 receptacle, but with 5 positions and a lower gold mating finish of 8.00 µin (0.203 µm) versus 30.0 µin on the 5-103911-1. The 5-103911-1 offers three times the circuit count and thicker gold for higher mating-cycle duty.

Frequently asked questions

What is the mating pitch and row spacing of 5-103911-1?

The mating pitch is 0.050" (1.27 mm) and the row spacing is 0.100" (2.54 mm).

Is 5-103911-1 RoHS compliant?

Yes, it is ROHS3 compliant.
