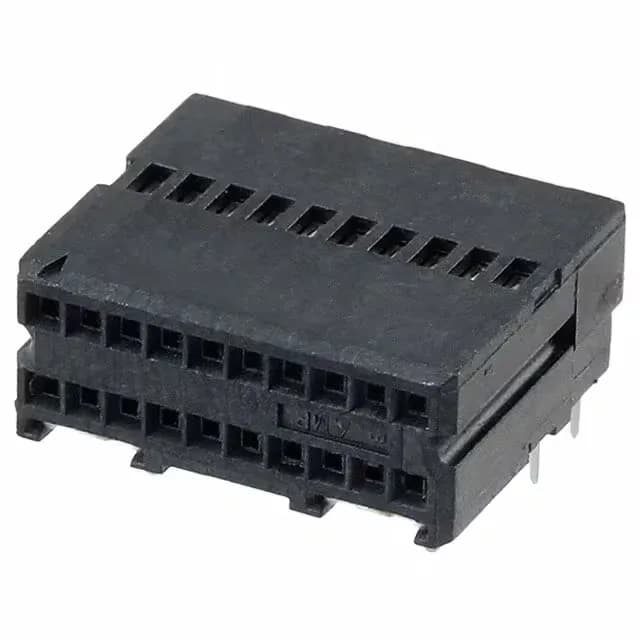

TE Connectivity AMP Connectors AMPMODU System 50, 5-103911-2, 20-position dual-row receptacle, 0.050" (1.27 mm) pitch, 1 A per contact, 30 VAC, gold mating finish, through-hole right-angle, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103911-2: A built-in board guide helps align the mating header during assembly — useful when the connector is hidden behind a panel or in a blind-mate scenario.
In a vibration environment, plan for a mechanical tie-down or a mating header with a locking ramp if the board pair will be handled after assembly.
It has 20 positions loaded in two rows — all positions are populated.
Yes, it is ROHS3 compliant — no restricted substances above the exemption thresholds.
