TE Connectivity AMP Connectors 5-103911-3 — Pin Headers, Sockets & Housings

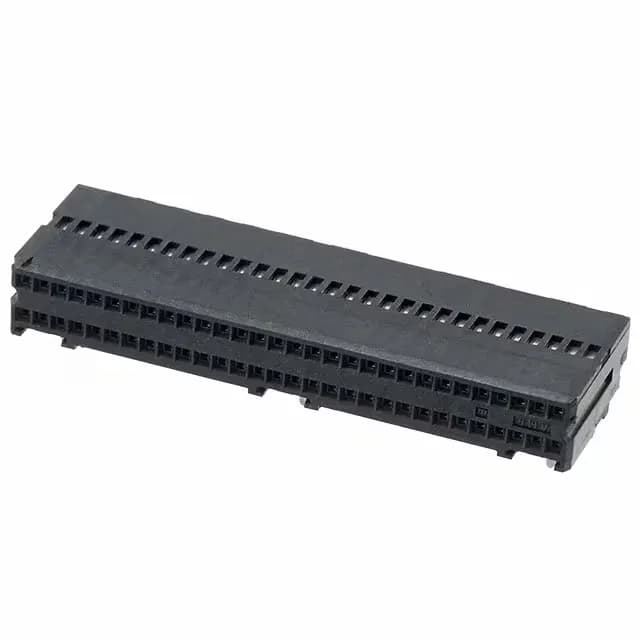

5-103911-3 AMPMODU System 50 Receptacle, 60 Pos, 1.27mm

MPN5-103911-3
Active

TE Connectivity AMPMODU System 50 receptacle, order code 5-103911-3, 60 positions, dual row, 1.27 mm pitch, 1 A, 30 VAC, gold-plated mating contacts, through-hole right-angle, solder termination.

$12.2526Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-103911-3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103911-3 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating30VAC
Current rating1A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.217\" (5.51mm)
Insulation materialThermoplastic, Glass Filled

All specifications

5-103911-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions60
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

60-position board-to-board receptacle

The 5-103911-3 is the 60-position member of TE's AMPMODU System 50 board-to-board receptacle line. It carries gold-plated mating contacts rated 1 A at 30 VAC and mounts through-hole right-angle with solder termination.

The 1.27 mm (0.050 in) mating pitch with a 2.54 mm (0.100 in) row spacing sets the board footprint — the 60 positions occupy a 38.1 mm board edge. The through-hole right-angle orientation places the connector parallel to the PCB, suiting edge-mount applications where vertical clearance is limited.
