TE Connectivity AMP Connectors 5-104068-1 — Pin Headers

5-104068-1 TE Connectivity AMP Connectors Header 20 Pos

MPN5-104068-1
Active

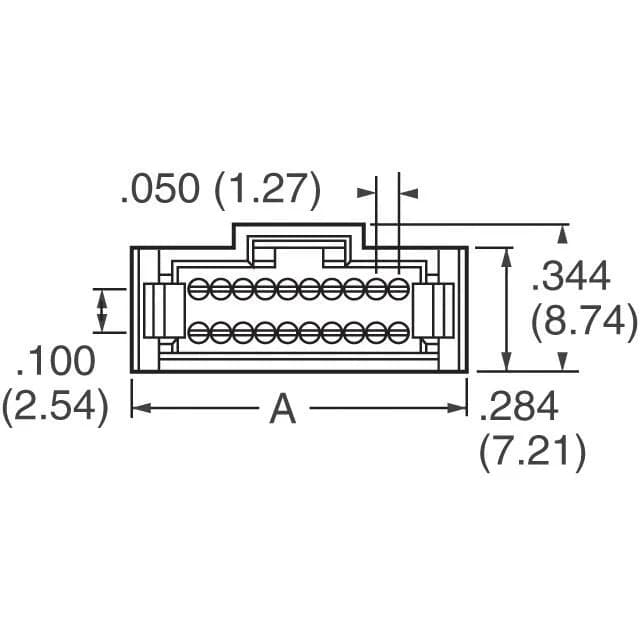

TE Connectivity AMPMODU System 50 header, 5-104068-1, 20-position, 2-row, 0.050" (1.27mm) pitch, shrouded-2 wall, through-hole solder, gold mating finish, UL94 V-0, -65°C~105°C, 30VAC.

$5.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104068-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-104068-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104068-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

1.27mm Pitch Shrouded Header for Signal-Density Boards

The 5-104068-1: The 0.050-inch (1.27mm) pitch on this 20-position, 2-row header sets the board footprint for dense signal routing — trace escapes between pads require a 4-layer PCB minimum to avoid crosstalk at the board edge. Rated at 30VAC, this header is intended for signal-level interconnects — not power distribution.

Latch Holder and Shrouded Walls for Vibration Resistance

The latch holder fastening secures the mating receptacle against accidental disconnection in environments with mechanical shock or vibration — a common requirement for automotive and industrial applications listed in the manufacturer's application scope.

Frequently asked questions

Is 5-104068-1 compatible with AMPMODU System 50?

Yes, 5-104068-1 is part of the AMPMODU System 50 series. It mates with AMPMODU System 50 receptacles that accept the same 0.050-inch pitch and 20-position layout. Confirm the mating half part number against your assembly drawing before ordering.
