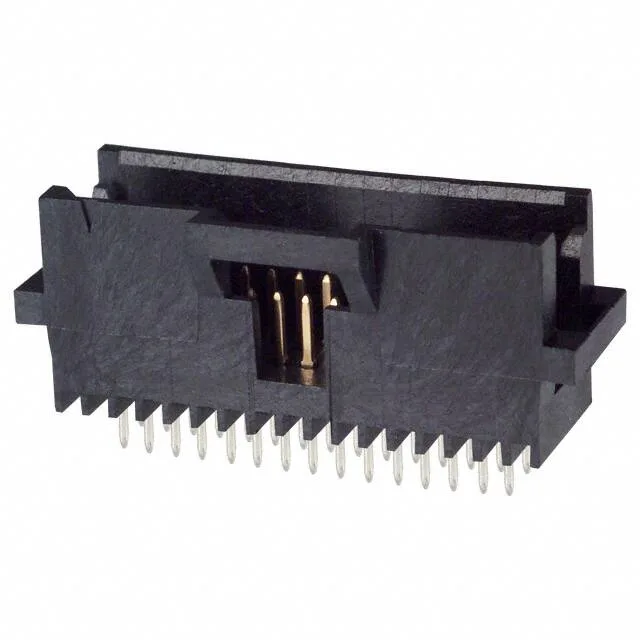

TE Connectivity AMPMODU System 50 header, order code 5-104068-3, 30 positions, dual row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104068-3 is the 30-position dual-row member of the TE AMPMODU System 50 header line, with a 1.27 mm mating pitch and 2.54 mm row spacing. Gold-plated mating contacts rated 30 VAC, through-hole solder termination, and a shrouded 2-wall housing with latch holder fastening.
The UL94 V-0 thermoplastic housing stands 0.390" (9.91 mm) above the board and accepts all 30 positions loaded.
The style is Board to Board or Cable, and the series is AMPMODU System 50.
