TE Connectivity AMP Connectors 5-104068-5 — Pin Headers

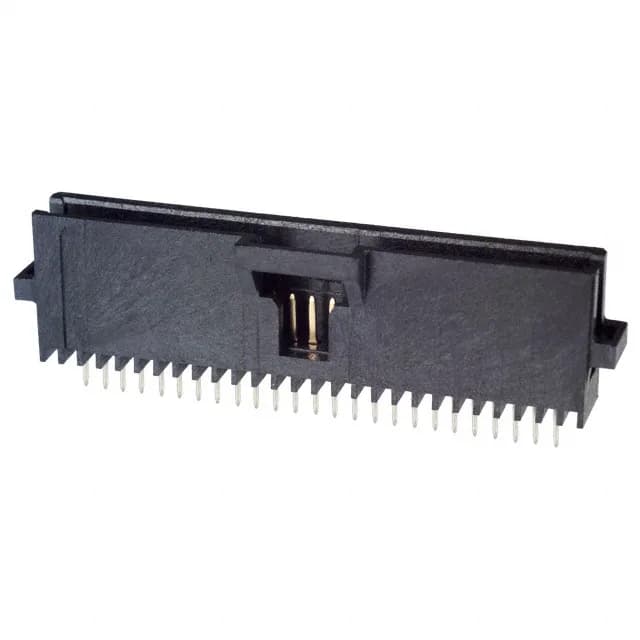

5-104068-5 TE Connectivity AMPMODU System 50 Header, 50 Pos

MPN5-104068-5
Active

TE Connectivity AMP Connectors AMPMODU System 50 header, 5-104068-5, 50 positions, 2 rows, 0.050" (1.27 mm) pitch, through-hole, shrouded-2 wall, gold mating contacts, 30 VAC, UL94 V-0, active.

$13.7300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104068-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-104068-5 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104068-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.050-inch pitch, 50-position dual-row header

The 5-104068-5: Rated at 30 VAC, this header is suited for low-voltage signal and data circuits in automotive, medical, telecom, and general-purpose equipment.

Shrouded housing and latch retention

The shrouded-2 wall design protects the pins during handling and guides the mating receptacle into alignment. Operating temperature range from -65°C to 105°C covers most indoor and under-hood automotive environments.

ROHS3 compliant — no restricted substances above threshold limits. Pricing and availability are confirmed at quote time against the BOM quantity. No stock-holding claim; sourced through independent distribution per RFQ.

Frequently asked questions

Is 5-104068-5 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's listing.
