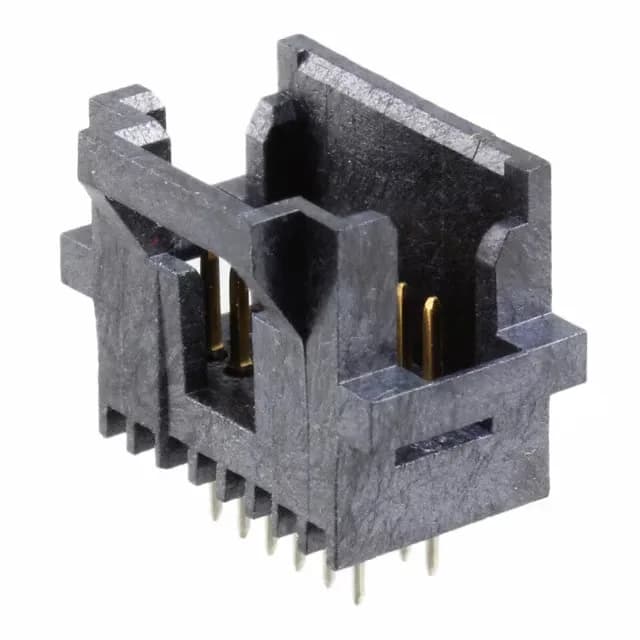

TE Connectivity AMPMODU System 50 header, 5-104068-8, shrouded 2-wall, 12 circuits, 2 rows, 0.050" (1.27 mm) pitch, through-hole solder termination, gold-plated male pins, 30 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104068-8: Rated at 30 VAC, this header is suited for low-voltage signal paths in automotive, medical, and telecom equipment — not for power distribution. The gold-plated mating contacts (30 µinch) support repeated mating cycles in field-service applications without corrosion.
The tin-plated posts (150 µinch) solder cleanly into through-hole boards.
All 12 positions are loaded.
