TE Connectivity AMP Connectors 5-104186-1 — Pin Headers

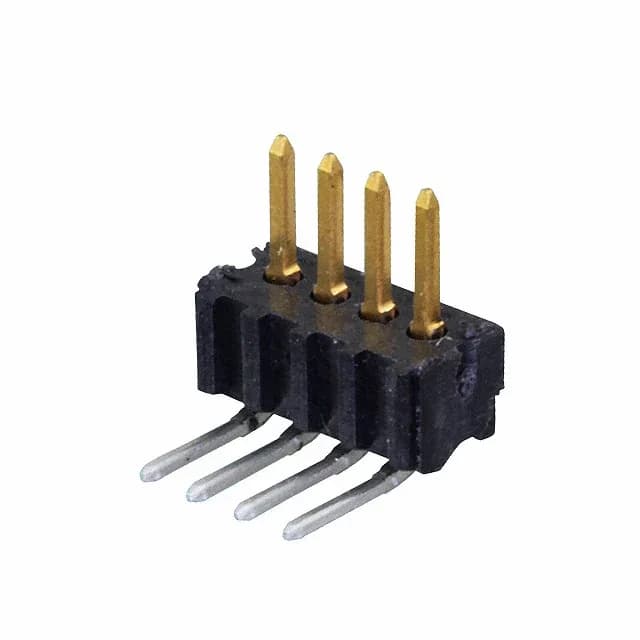

5-104186-1 TE AMPMODU System 50 Header, 4-Pos, 1.27mm

MPN5-104186-1
Active

TE Connectivity AMPMODU System 50 header, 5-104186-1, 4-position single-row, 1.27mm pitch, right-angle through-hole, unshrouded, gold-plated mating contacts, 30VAC rating, UL94 V-0.

$3.2000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104186-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104186-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.116\" (2.95mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104186-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows1
Pitch0.050\" (1.27mm)
Positions4
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle, 1.27mm pitch — board-edge signal routing

The 5-104186-1 is a 4-position, single-row header from the AMPMODU System 50 series, with a 1.27mm (0.050-inch) pitch — the tightest in the family.

Voltage and current — signal-level only

Rated at 30VAC, this header is strictly for low-voltage signal interconnects — not for power distribution or high-voltage DC. Compared to the shrouded, 2-row 1-1871673-2 (2.50mm pitch, 250VAC/DC rating), the 5-104186-1 trades voltage headroom and mechanical keying for a denser footprint and lower profile.

Frequently asked questions

Is 5-104186-1 RoHS compliant?

Yes, the 5-104186-1 is ROHS3 compliant.
