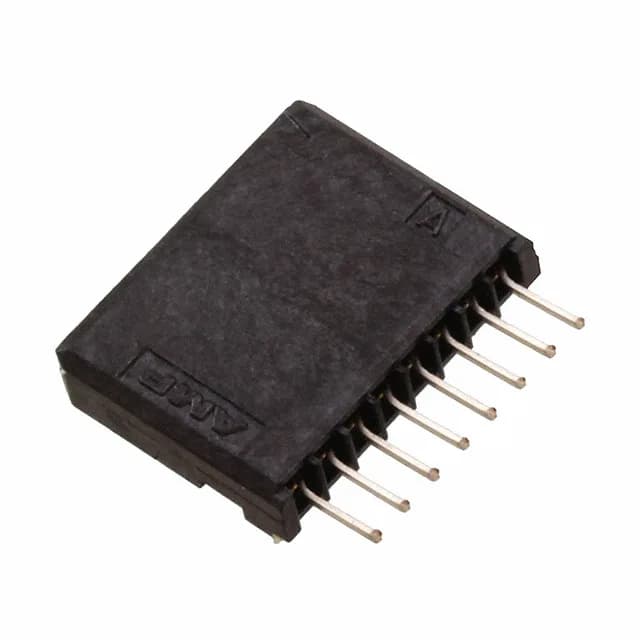

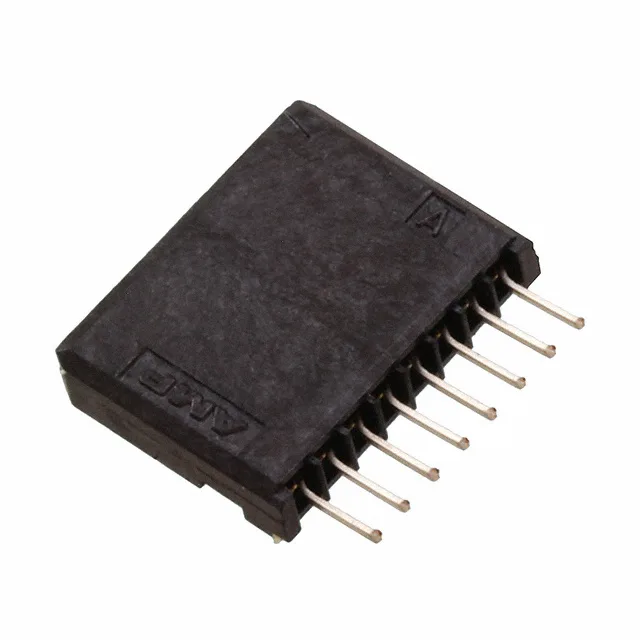

TE Connectivity AMPMODU System 50, 8-position single-row receptacle, 1.27mm pitch, through-hole solder termination, gold-plated female sockets, rated 1A at 30VAC, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.43mm, 12.57mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104192-1: This is an 8-position single-row receptacle on 1.27mm pitch — the tightest pitch in the AMPMODU System 50 family, which sets the board footprint for dense parallel-board stacking. The mated stack height options are 11.43mm and 12.57mm, giving the layout engineer two z-height budgets without changing the receptacle side.
The 0.100" (2.54mm) post length and through-hole termination are standard for soldering into a PCB.
5-104192-1 is available through independent distribution.
RoHS compliance is standard for this TE Connectivity part, though the evidence does not list a specific RoHS certificate. Confirm with your compliance team at order.
This receptacle mates with AMPMODU System 50 headers on 1.27mm pitch, same position count.
