TE Connectivity AMP Connectors 5-104361-3 — Pin Headers

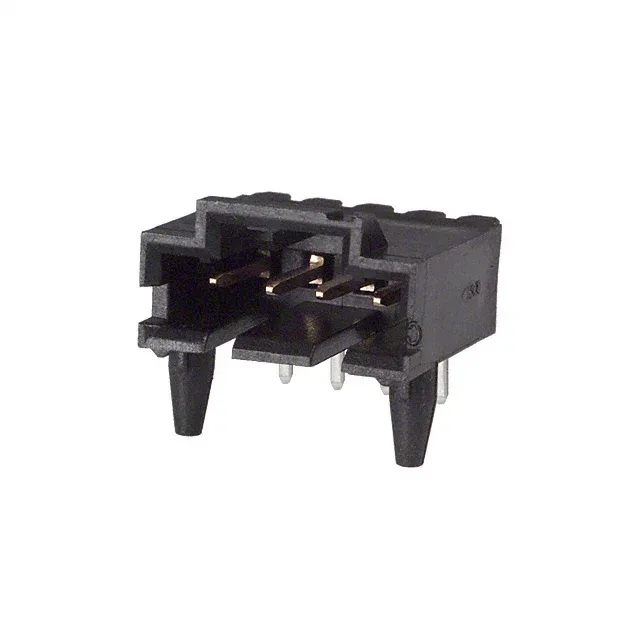

5-104361-3 TE AMPMODU MTE 4-Pin Right-Angle Header

MPN5-104361-3
Active

TE Connectivity AMPMODU MTE, 5-104361-3, 4-position single-row right-angle pin header, 2.54mm pitch, shrouded 4-wall with latch holder, board lock, gold-plated mating contacts, rated 3A, -65°C to 105°C, UL94 V-0.

$1.6300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104361-3 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104361-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.145\" (3.68mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle header with a latch that holds

The 5-104361-3: This is a 4-position, single-row, right-angle header from the AMPMODU MTE series, on 0.100" (2.54mm) pitch. Rated 3A per contact with a -65°C to 105°C operating range, it's specced for Automotive, General Purpose, Medical, and Telecommunications applications.

Mating contacts are gold-plated at 15.0µin (0.38µm) — that's the standard AMPMODU MTE gold flash, good for repeated mating cycles in field-serviceable gear. The post tails are tin-plated at 100.0µin (2.54µm), which solders cleanly to the through-hole board.

Frequently asked questions

Can 5-104361-3 be used in automotive applications?

Yes, the manufacturer lists Automotive among its rated applications. The -65°C to 105°C temperature range and UL94 V-0 housing support under-hood and cabin environments.
