Right-angle board mount with latch retention

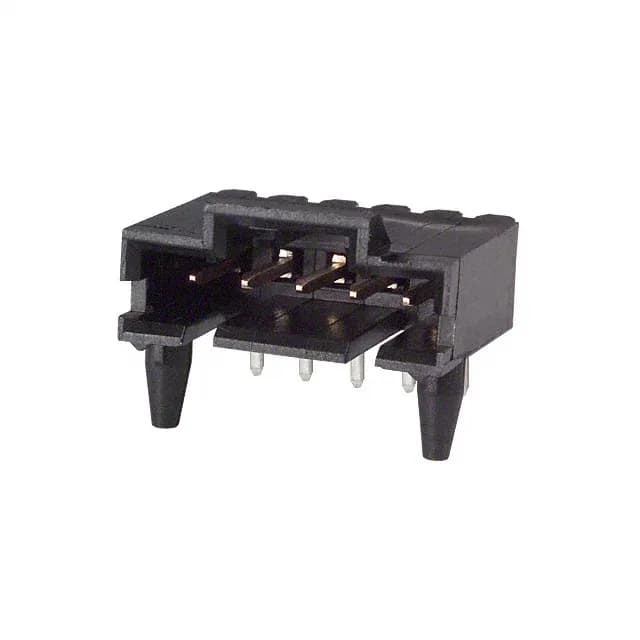

The 5-104361-4 is a 5-position, single-row, shrouded header from the AMPMODU MTE series. It mounts through-hole with a right-angle orientation, placing the mating face parallel to the board edge — a common fit for cable-to-board interconnects in space-constrained enclosures.
Gold mating finish and current rating
The post (solder tail) receives 100.0 µinch tin plating.
Sourcing and lifecycle
RoHS compliant per the manufacturer's declaration.
Mating and termination
This header accepts the matching AMPMODU MTE receptacle housing with crimp terminals — the latch holder on the header engages the receptacle's locking ramp for a secure mate. The keying slot prevents incorrect insertion of the mating half. Termination is solder to the PCB through the 0.145" (3.68mm) post length. The insulation height of 0.200" (5.08mm) and contact mating length of 0.230" (5.84mm) define the mated stack height and clearance for the receptacle.
