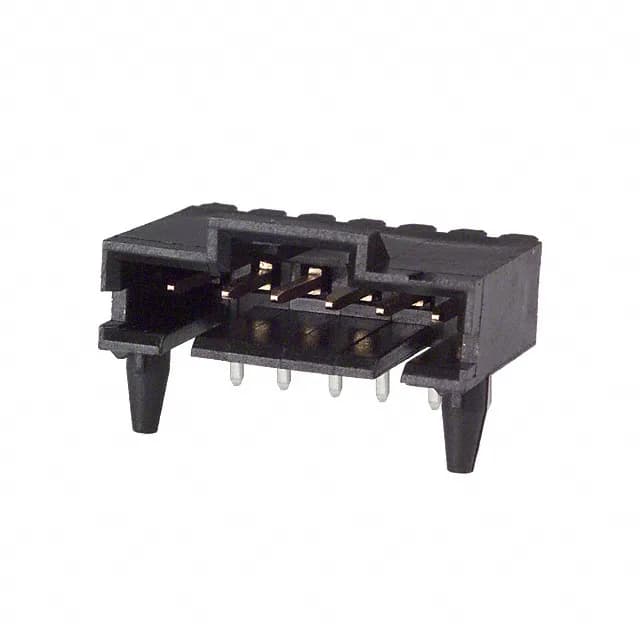

TE Connectivity AMP Connectors AMPMODU MTE, 5-104361-5, 6-position single-row shrouded header, 0.100" (2.54mm) pitch, right-angle through-hole, gold-plated square pins, board lock and keying slot, rated 3A per contact.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-104361-5 is a 6-position, single-row, shrouded-4-wall header from the AMPMODU MTE series.
The keying slot in the shroud prevents mismating with incorrect receptacles, reducing assembly errors on the line or in the field.
Yes, it is RoHS compliant.
It mates with the matching AMPMODU MTE receptacle or cable assembly. The 0.100-inch pitch and single-row layout are standard across the series; confirm the mating half position count and keying alignment.
