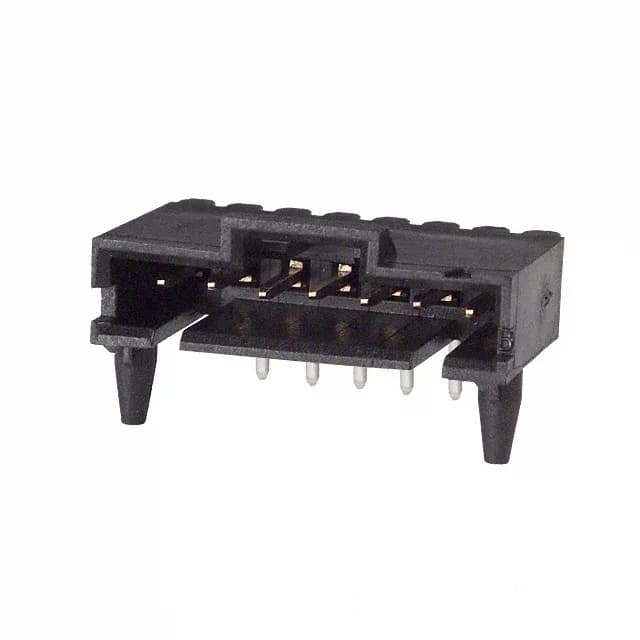

7-Position Right-Angle Header with Board Lock
The 5-104361-6 is a 7-position, single-row, right-angle pin header from the AMPMODU MTE series. It mates with standard AMPMODU MTE receptacles for board-to-board or cable connections.
5-104361-6 TE Connectivity AMPMODU MTE Header, 7 Pos, 2.54mm
MPN5-104361-6
Active
TE Connectivity AMPMODU MTE, 5-104361-6, 7-position single-row right-angle pin header, 0.100" (2.54mm) pitch, gold-plated mating contacts, shrouded with board lock and keying slot, rated 3A, -65°C to 105°C.
$2.3000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the mating connector for 5-104361-6?
The 5-104361-6 mates with AMPMODU MTE receptacles (e.g., 5-104362-6 series) for wire-to-board or board-to-board connections. Confirm the receptacle's position count and keying match your application.
Does 5-104361-6 have a board lock and keying slot?
Yes, the header includes both a board lock for solder retention and a keying slot to prevent mis-mating with unkeyed receptacles.
