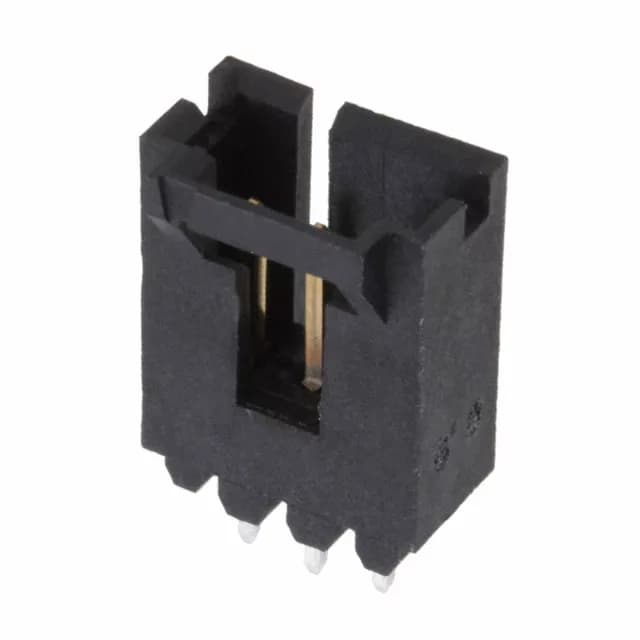

TE Connectivity AMPMODU MTE header, 5-104362-2, 3 positions, 0.100" (2.54mm) pitch, male pin, shrouded 4-wall, gold mating finish, latch holder, through-hole press-fit/solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-104362-2: Gold resists corrosion and fretting better than tin in environments with temperature swings or humidity.
Compared to 1394090-1 (also AMPMODU MTE, 3 positions, 2.54mm pitch, shrouded, latch holder), the 5-104362-2 shares the same pitch, row count, and fastening type.
5-104362-2 is available through independent distribution channels.
This header mates with AMPMODU MTE receptacle housings that accept the matching crimp terminals.
