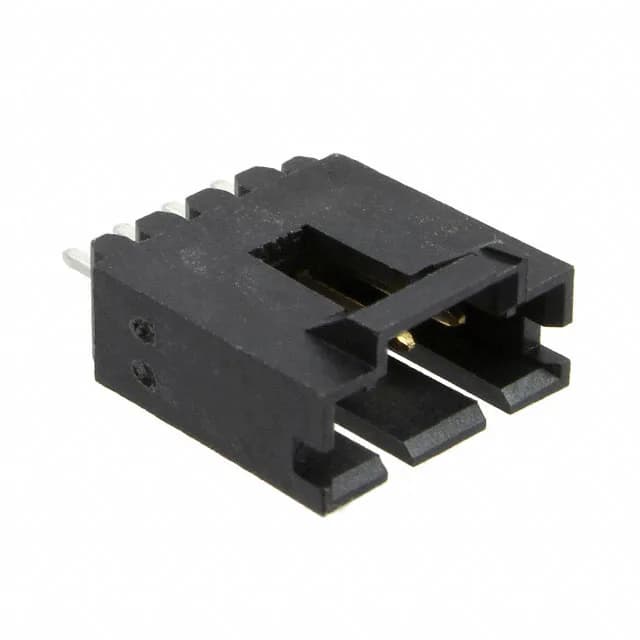

TE Connectivity AMPMODU MTE, 5-104362-3, 4-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole, gold-plated male pins, 3A rating, UL94 V-0 thermoplastic housing, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The through-hole termination with press-fit solder tails (0.130" post length) suits both wave-solder and selective-solder processes. The keying slot feature ensures correct orientation, preventing reverse mating in multi-connector panels.
5-104362-3 is sourced through independent distribution. Submit an RFQ for a firm quote and lead time.
5-104362-3 mates with AMPMODU MTE receptacle housings that accept crimp terminals. The latch holder fastening type provides secure retention. Confirm the circuit count and pitch match your receptacle before ordering.
