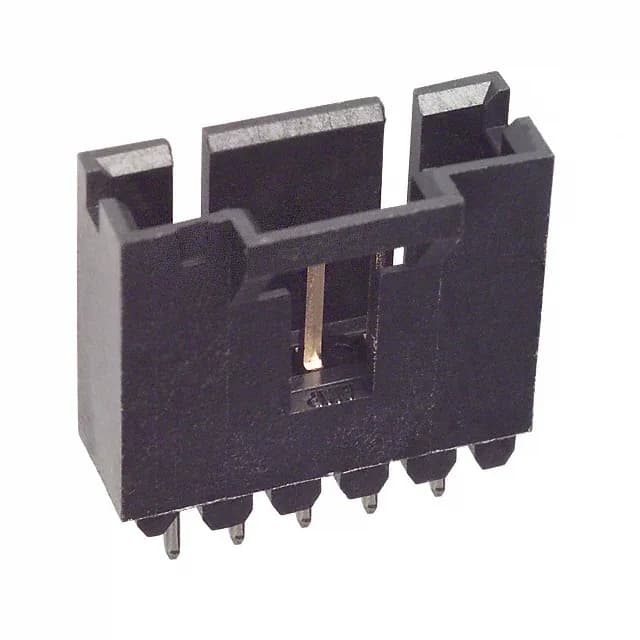

TE Connectivity AMPMODU MTE header, 5 positions, 0.100" (2.54mm) pitch, shrouded, male pin, through-hole, press-fit/solder termination, 3A, 267V, gold mating finish, UL94 V-0, -65°C to 105°C
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Rated 3A per contact at 267V, with a gold mating finish (15.0µin) over brass pins, this header is suited for signal-level interconnects in automotive, general purpose, medical, and telecommunications equipment where repeated mating cycles and vibration resistance are required.
Termination is through-hole with a press-fit option — press-fit eliminates the need for soldering in backplane or high-reliability assemblies, while the solder option allows standard wave-solder processing.
The 5-104362-4 mates with AMPMODU MTE receptacle housings that accept the latch holder.
