TE Connectivity AMP Connectors 5-104362-7 — Pin Headers

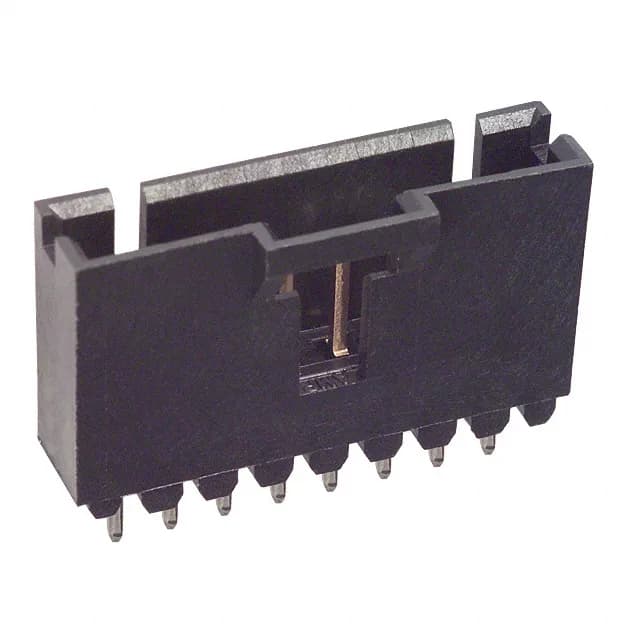

5-104362-7 TE Connectivity AMPMODU MTE Header 8POS 2.54mm

MPN5-104362-7
Active

TE Connectivity AMPMODU MTE header, 5-104362-7, 8-position single-row, 0.100" (2.54mm) pitch, shrouded-4 wall, through hole, press-fit/solder termination, gold mating finish, 3A, 267V, -65°C to 105°C, UL94 V-0.

$1.3600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104362-7 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating267V
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic

All specifications

5-104362-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

8-position single-row header for board-to-board or cable harness

The 5-104362-7 is an 8-position, single-row header from the AMPMODU MTE series, designed for board-to-board or cable-to-board interconnects. The shrouded 4-wall design protects the male pins during handling and mating, and the keying slot prevents mis-mating with non-keyed receptacles. Rated at 3A per contact and 267V, this header suits signal-level and low-power circuits in automotive, general purpose, medical, and telecommunications equipment.

Active production and sourcing posture

Sourced per RFQ — confirm the BOM quantity and mating half before committing.

Frequently asked questions

Is 5-104362-7 RoHS compliant?

Yes, it is RoHS compliant.

How can I order 5-104362-7 and check stock?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
