TE Connectivity AMP Connectors 5-104362-8 — Pin Headers

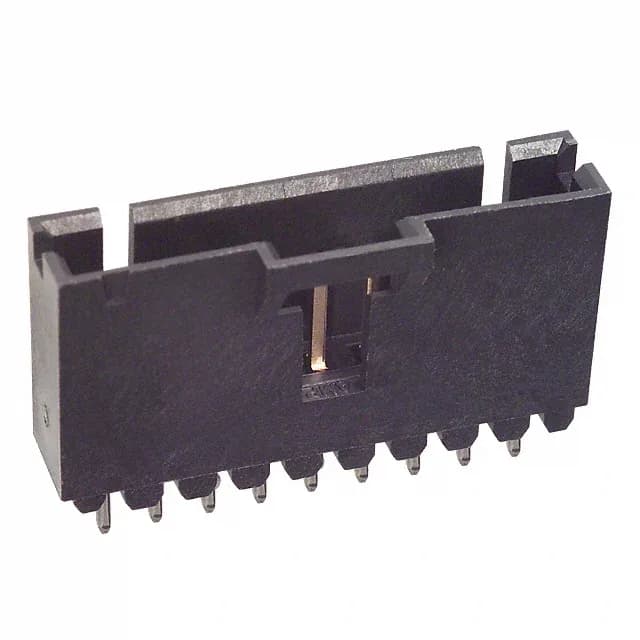

5-104362-8 TE Connectivity AMPMODU MTE 9-Pin Header 2.54mm

MPN5-104362-8
Active

TE Connectivity AMP Connectors AMPMODU MTE, 5-104362-8, Header, 9 positions, 0.100" (2.54 mm) pitch, through-hole, shrouded 4-wall, gold mating finish, 3 A, -65°C to 105°C, UL94 V-0.

$2.0000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-104362-8 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating267V
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic

All specifications

5-104362-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions9
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 5-104362-8 is a 9-position, single-row, through-hole header from the AMPMODU MTE series.

Press-Fit and Solder Termination Options

Termination is listed as press-fit and solder — the through-hole posts (0.130" / 3.30 mm long) can be wave-soldered or pressed into plated through-holes for a solderless backplane assembly. The insulation height of 0.535" (13.60 mm) leaves clearance for adjacent components on the board.

The part ships in tube packaging. RoHS compliant per current directive. The base product number is 104362; the 5-104362-8 suffix specifies the 9-position, single-row, through-hole variant with gold mating finish and tin post. No official second source is listed, but peer MPNs 1394090-1, 1376366-8, and 1376779-2 exist in the same AMPMODU MTE family — verify pinout and keying compatibility before substitution.

Keying Slot and Latch Holder

Frequently asked questions

What is the pinout of TE Connectivity 5-104362-8?

The 5-104362-8 is a 9-position, single-row header. Contact assignment depends on your mating receptacle wiring — the header itself provides no internal connections between pins.

Is 5-104362-8 RoHS compliant?

Yes, the 5-104362-8 is RoHS Compliant per current directive.
