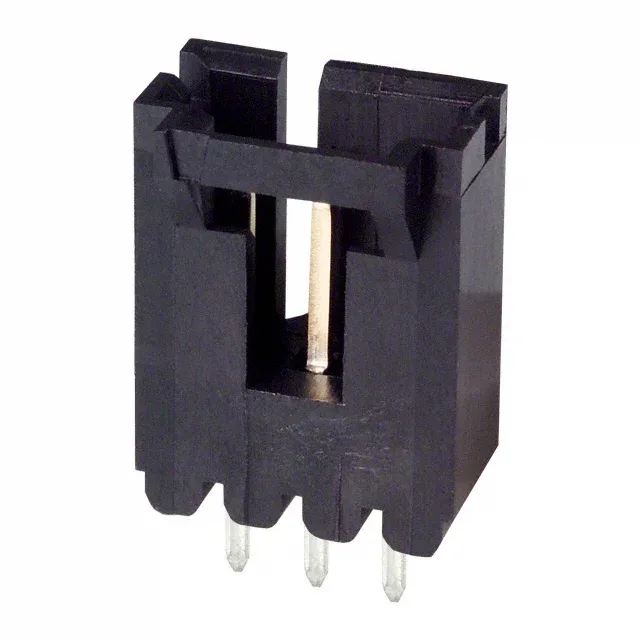

TE Connectivity AMPMODU MTE header, 5-104363-2, 3 positions, 0.100" (2.54mm) pitch, single row, shrouded, through-hole solder, gold mating contacts, 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
It mates with standard AMPMODU MTE receptacles for board-to-board or cable connections.
Through-hole mounting with 0.130" (3.30mm) post length — the solder tail protrudes enough for a solid fillet on standard 1.6mm boards. A keying slot prevents mismating with non-keyed receptacles.
The pitch is 0.100" (2.54mm), standard for AMPMODU MTE headers.
Yes, the header is listed for automotive, medical, telecommunications, and general-purpose use.
