TE Connectivity AMP Connectors 5-104450-2 — Pin Headers

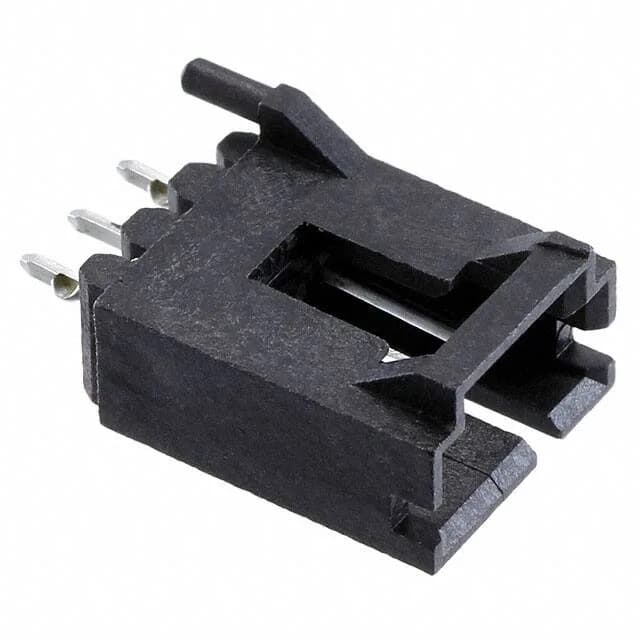

5-104450-2 TE Connectivity AMPMODU MTE Header, 3 Pos, 2.54mm

MPN5-104450-2
Active

TE Connectivity AMPMODU MTE header, 3 positions, 0.100" (2.54mm) pitch, shrouded 4-wall, tin-plated contacts, 3A rating, through-hole press-fit/solder termination, active production.

$2.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104450-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104450-2 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104450-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Guide, Keying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The 5-104450-2: The through-hole termination accepts press-fit or solder assembly; the 0.130" (3.30mm) post length clears standard 1.6mm PCBs with room for wave solder fillets.

Mating and Housing Fit Checklist

This is a shrouded 4-wall header with a latch holder fastening system — mates with AMPMODU MTE receptacle housings that carry the matching latch ramp. The board guide and keying slot on the header prevent misalignment and reverse insertion during assembly. The 0.230" (5.84mm) mating pin length engages the receptacle contact beam fully; overall contact length is 0.545" (13.84mm).

RoHS compliant.

Frequently asked questions

Where to buy 5-104450-2?

Sourced through independent distribution channels; quoted to order against your BOM quantity. Availability and current pricing confirmed at RFQ.

Is 5-104450-2 RoHS compliant?

Yes, listed as RoHS Compliant.
