TE Connectivity AMP Connectors 5-104450-3 — Pin Headers

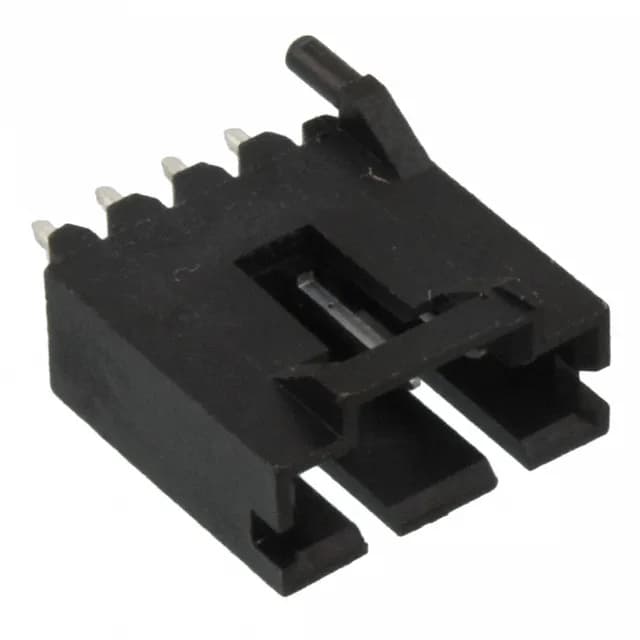

5-104450-3 TE AMPMODU MTE Header 4 Pos 2.54mm

MPN5-104450-3
Active

TE Connectivity AMPMODU MTE, 5-104450-3, Board to Board or Cable, Shrouded - 4 Wall, Header, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Press-Fit, Solder, 3A, Tin Contacts, Black Thermoplastic, UL94 V-0, -65°C ~ 105°C.

$1.6400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104450-3 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104450-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Guide, Keying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

4-Pin Shrouded Header for Board or Cable Duty

The 0.100" (2.54 mm) pitch matches the standard footprint for prototyping and production layouts, and the shrouded 4-wall design protects the square male pins from damage during handling and mis-mating.

Rated for 3 A with Tin-Plated Contacts

Press-Fit or Solder Termination, Keying Slot Included

Termination options include both press-fit and solder, with a through-hole mounting style. A board guide and keying slot are built into the housing — the keying slot prevents insertion into a mismatched receptacle, and the board guide aligns the header during automated or manual placement.

Frequently asked questions

What is the pinout of 5-104450-3?

The 5-104450-3 is a single-row, 4-position header. Pin 1 is typically indicated by a molded key or chamfer on the housing. The square pins are arranged in a single row at 0.100" pitch; no internal circuit connections exist — each pin is an independent through-hole contact.

Is 5-104450-3 RoHS compliant?

Yes, 5-104450-3 is RoHS compliant per the manufacturer's status.

What is the mating connector for 5-104450-3?

The 5-104450-3 mates with AMPMODU MTE series receptacles having the same 0.100" pitch and 4 positions, typically with a latch or locking ramp to engage the latch holder. The keying slot on the header ensures correct orientation.
