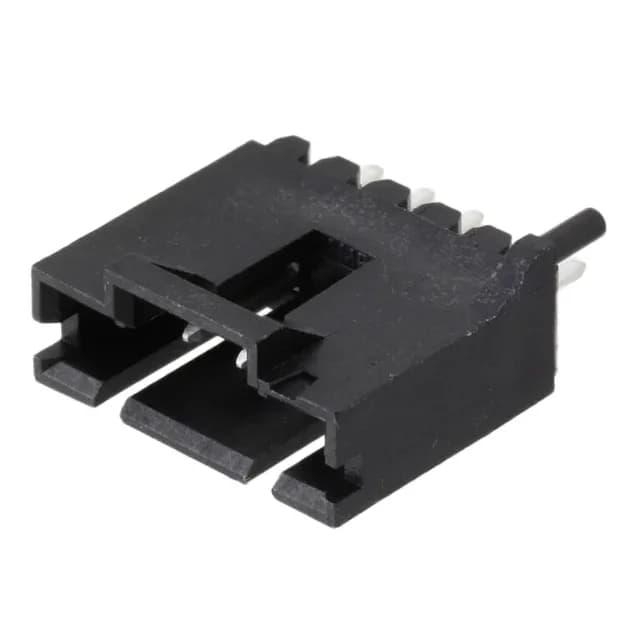

It uses a 0.100" (2.54mm) pitch and a full 4-wall shroud to protect the male square pins during mating. The housing is molded from UL94 V-0 rated thermoplastic, black in color, with an insulation height of 0.535" (13.60mm) and an overall contact length of 0.545" (13.84mm).
Press-Fit and Solder Termination Options
Termination is listed as both press-fit and solder, with a through-hole mounting style. The contact length - post is 0.130" (3.30mm), and the contact length - mating is 0.230" (5.84mm). The header includes a board guide and keying slot to assist alignment during assembly, and a latch holder fastening type for secure mating with the corresponding receptacle.
