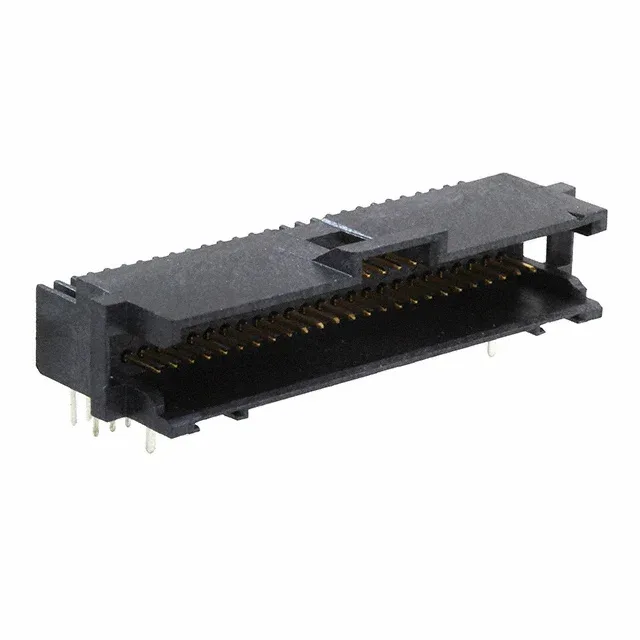

TE Connectivity AMP Connectors AMPMODU System 50 header, 5-104477-5, 50 positions, 0.050-inch (1.27mm) pitch, right-angle through-hole, shrouded 2-wall, gold mating finish, latch holder, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104477-5 is a 50-position, 2-row header from the AMPMODU System 50 series, with a 0.050-inch (1.27mm) mating pitch and 0.100-inch (2.54mm) row spacing. All 50 positions are loaded with male pins, gold-plated on the mating end (30.0µin) and tin-plated on the solder posts (150.0µin).
This is a male pin header. It mates with a female socket receptacle from the AMPMODU System 50 series, typically a 50-position, 0.050-inch pitch IDC or crimp socket. Confirm the mating half part number against your assembly drawing.
The mating pitch is 0.050-inch (1.27mm) with a row spacing of 0.100-inch (2.54mm).
