TE Connectivity AMP Connectors 5-104477-9 — Pin Headers

5-104477-9 TE Connectivity AMPMODU System 50 Header 60 Pos

MPN5-104477-9
Active

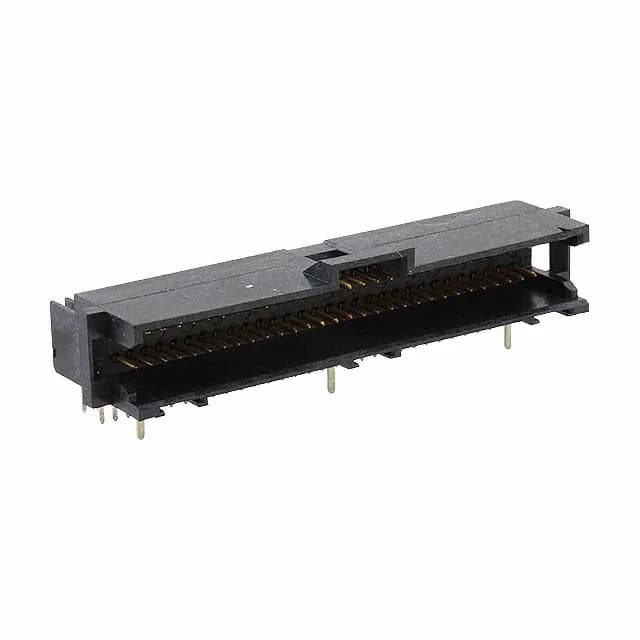

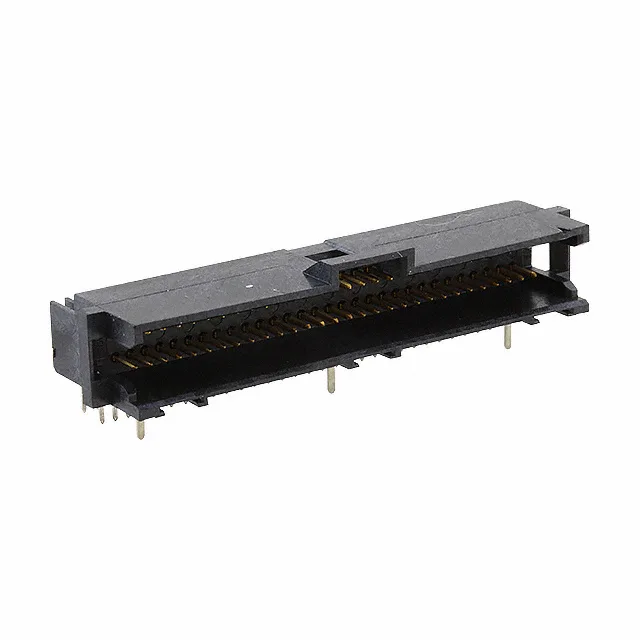

TE Connectivity AMP Connectors AMPMODU System 50 header, 5-104477-9, 60 positions, 2 rows, 0.050" (1.27mm) pitch, right-angle through-hole, shrouded 2-wall, gold mating finish, latch holder, UL94 V-0, active.

$24.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104477-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104477-9 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-104477-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions60
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.145\" (3.68mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

High-Density 60-Position Right-Angle Header for Signal Routing

The 5-104477-9 is a 60-position, dual-row, right-angle through-hole header from TE Connectivity's AMPMODU System 50 series. The 2-wall shroud and latch holder protect the male pins and provide a positive lock with the mating connector, reducing the risk of disconnection under vibration in automotive, telecom, or medical equipment.

Pitch, Pin Count, and Board Layout Constraints

At 60 positions in a 2-row arrangement, the row spacing is 0.100" (2.54mm), and the mating contact length is 0.125" (3.18mm).

Voltage and Current Limits for Signal Duty

Rated at 30 VAC, this header is intended for low-voltage signal paths, not power distribution.

Comparison with Peer Alternatives

The 953440-3 and 1379030-3 are other AMPMODU variants but differ in position count and pitch; the 5-104477-9's 60-position, 1.27mm pitch is unique in this comparison set for high-density routing.

Frequently asked questions

What is the pin configuration of 5-104477-9?

It is a 60-position, 2-row header with all positions loaded. The mating pitch is 0.050" (1.27mm) and the row spacing is 0.100" (2.54mm). The contact type is male pin, circular shape, with a mating contact length of 0.125" (3.18mm).

What is the closest functional second-source for 5-104477-9?

The peer 1-1871673-2 is a different pitch (2.50mm) and lower pin count (4 positions), so a board redesign would be required. The 5-104477-9 is best sourced as a sole-source item.
