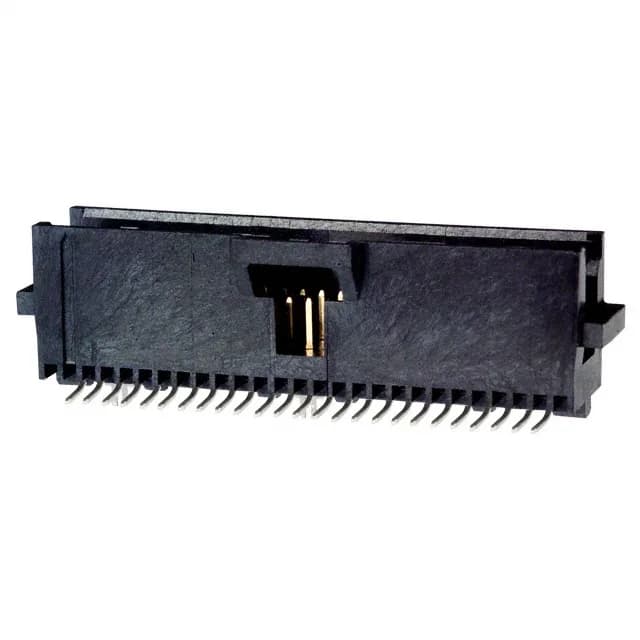

TE Connectivity AMPMODU System 50 header, 5-104549-7, 50 positions, 1.27mm pitch, dual-row, surface mount, shrouded 4-wall, gold mating contacts, board lock, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104549-7: This is a 50-position, dual-row header from the AMPMODU System 50 series, pitched at 1.27mm on the mating interface.
Termination is solder — surface mount, not through-hole. In a production environment, the board lock also provides mechanical retention against the shear load from the mating cable assembly.
The mating pitch is 0.050" (1.27mm). Row spacing is 0.100" (2.54mm).
Yes, it is ROHS3 compliant.
