TE Connectivity AMP Connectors 5-104655-5 — Pin Headers

5-104655-5 TE Connectivity AMPMODU 50/50 Grid 40-Pin 1.27mm

MPN5-104655-5
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid header, 5-104655-5, 40 positions, 1.27mm pitch, shrouded 4-wall, surface mount, board locks, 0.5A per contact, gold mating finish, -65°C~105°C, UL94 V-0.

$7.6200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104655-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-104655-5 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating0.5A per Contact
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.226\" (5.74mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights6.35mm

All specifications

5-104655-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Military, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-Position, 1.27mm Pitch Board-to-Board Header

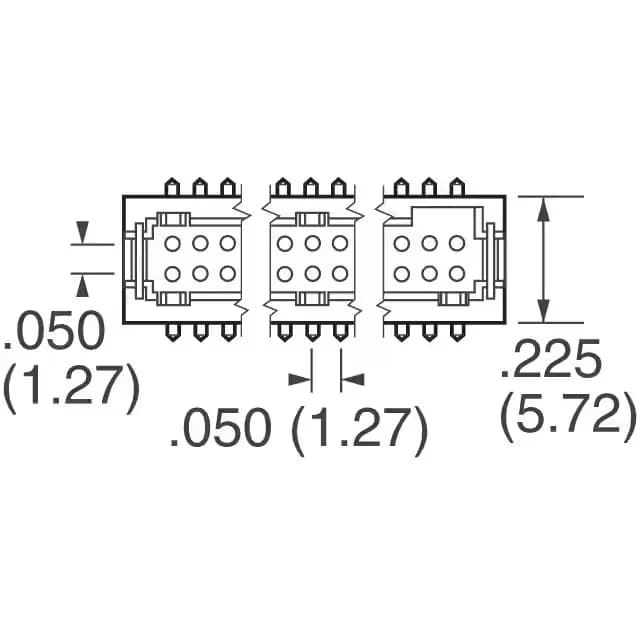

The 5-104655-5: This is a 40-position, dual-row header on 1.27mm pitch — the board footprint matches a 40-pin mezzanine receptacle with the same 1.27mm row spacing. The 6.35mm mated stack height sets the board-to-board gap in the assembly.

Contact Ratings and Plating

The solder tail finish is 150 µinch tin, compatible with standard lead-free reflow profiles.

Operating Range and Applications

Listed applications include automotive, general purpose, medical, military, and telecommunications — a broad signal interconnect for board-to-board mezzanine stacks.

Frequently asked questions

How can I order 5-104655-5 or check stock?

This part is Active and sourced to order against your BOM quantity.

What is the exact pitch and position count of 5-104655-5?

It is a 40-position, dual-row header with 1.27mm pitch on both rows and row spacing.

Is 5-104655-5 a shrouded header and does it have board locks?

Yes — it is a shrouded 4-wall header with board locks on the SMT feet for reflow retention.
